SKU: 6860-NTN

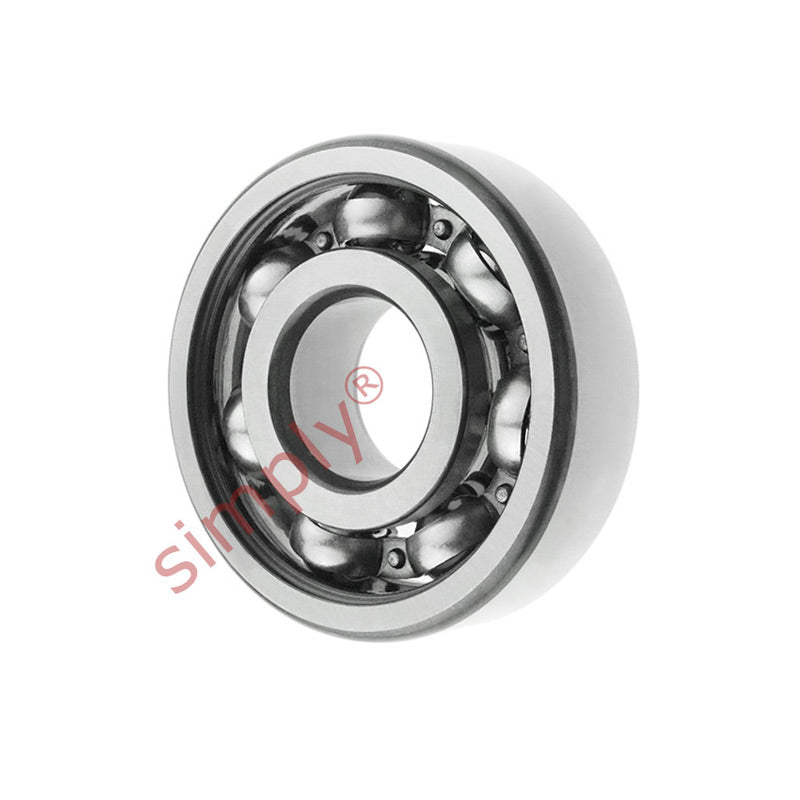

NTN 6860 Open Type Deep Groove Ball Bearing 300x380x38mm
NTN 6860 Open Type Deep Groove Ball Bearing 300x380x38mm
Regular price
$2,364.66
ex VAT
Regular price
Sale price
$2,364.66
ex VAT
Equivalent to: 6860CM 61860CM 61860T 61860 1860S 61860Y
In stock
Price Break
10+
$2,104.55
19+
$1,986.31
29+
$1,962.67
39+
$1,939.02
49+
$1,915.37
74+
$1,891.73
99+
$1,773.50
199+
$1,749.85
249+
$1,726.20
499+
$1,702.56
999+
$1,655.26
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6860CM 61860CM 61860T 61860 1860S 61860Y
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 380mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 300mm |
| D | 380mm |
| B | 38mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 179 kN |
| C<sub>or</sub> | 210 kN |
| C<sub>u</sub> | 7.6 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 1500 rpm |
| Oil | 1700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 311mm |
| D<sub>a</sub> Max. | 369mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 10.5 kg |
