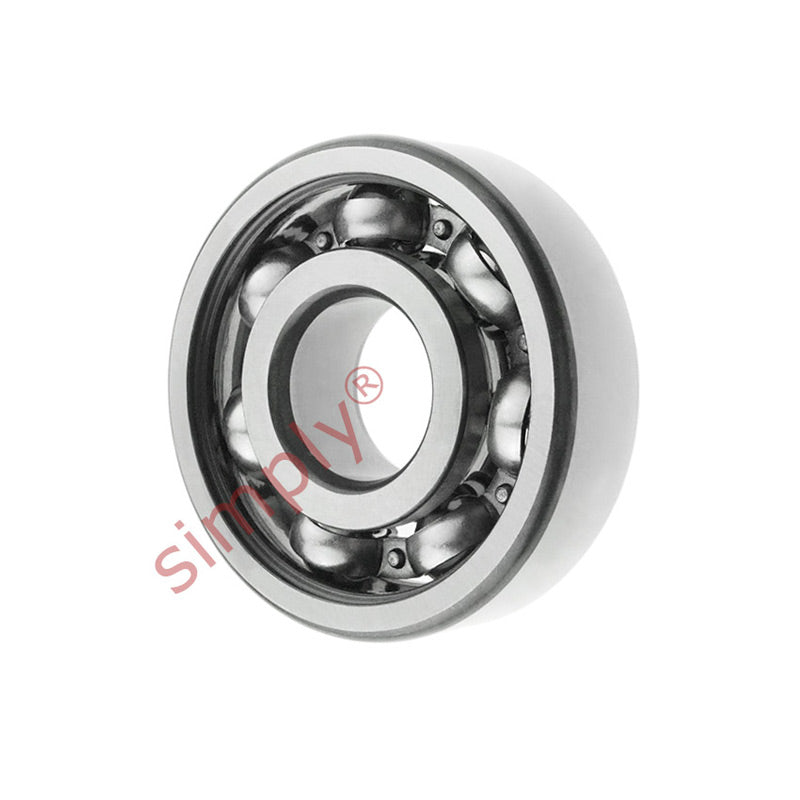

NTN 6936 Open Type Deep Groove Ball Bearing 180x250x33mm
NTN 6936 Open Type Deep Groove Ball Bearing 180x250x33mm
Regular price
$725.46
ex VAT
Regular price
Sale price
$725.46
ex VAT
Equivalent to: 6936CM 61936CM 9336K 61936 61936S AY180
In stock
Price Break
10+
$645.66
19+
$609.39
29+
$602.13
39+
$594.88
49+
$587.62
74+
$580.37
99+
$544.10
199+
$536.84
249+
$529.59
499+
$522.33
999+
$507.82
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6936CM 61936CM 9336K 61936 61936S AY180
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 250mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 180mm |
| D | 250mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 122 kN |
| C<sub>or</sub> | 119 kN |
| C<sub>u</sub> | 5.45 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 2400 rpm |
| Oil | 2900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 189mm |
| D<sub>a</sub> Max. | 241mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 4.76 kg |
