SKU: 7005-EU

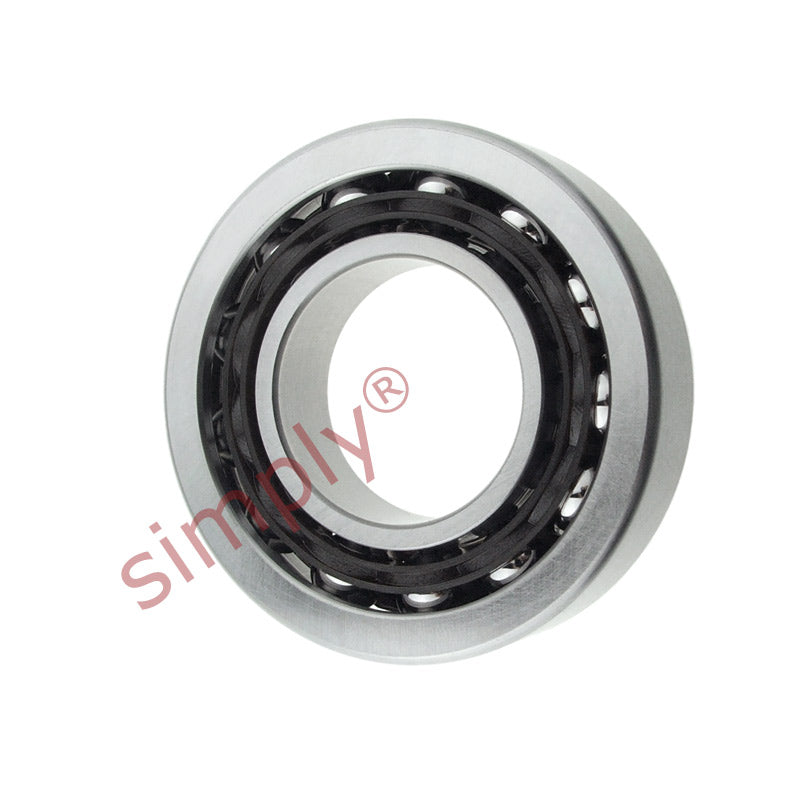

Budget 7005 Single Row Angular Contact Open Ball Bearing 25x47x12mm
Budget 7005 Single Row Angular Contact Open Ball Bearing 25x47x12mm
Regular price
$17.23
ex VAT
Regular price
Sale price
$17.23
ex VAT
Equivalent to: 7005B 7105
In stock
Price Break
10+
$15.33
19+
$14.47
29+
$14.30
39+
$14.13
49+
$13.96
74+
$13.78
99+
$12.92
199+
$12.75
249+
$12.58
499+
$12.41
999+
$12.06
Description
Description
Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Equivalent: 7005B 7105
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Equivalent: 7005B 7105
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| r1 | 1.0mm |
| r2 | 0.5mm |
| Dynamic load | 10.498 kN |
| Static load | 7.429 kN |
| Weight | 0.091 kg |
