SKU: 7210-2RS-EU

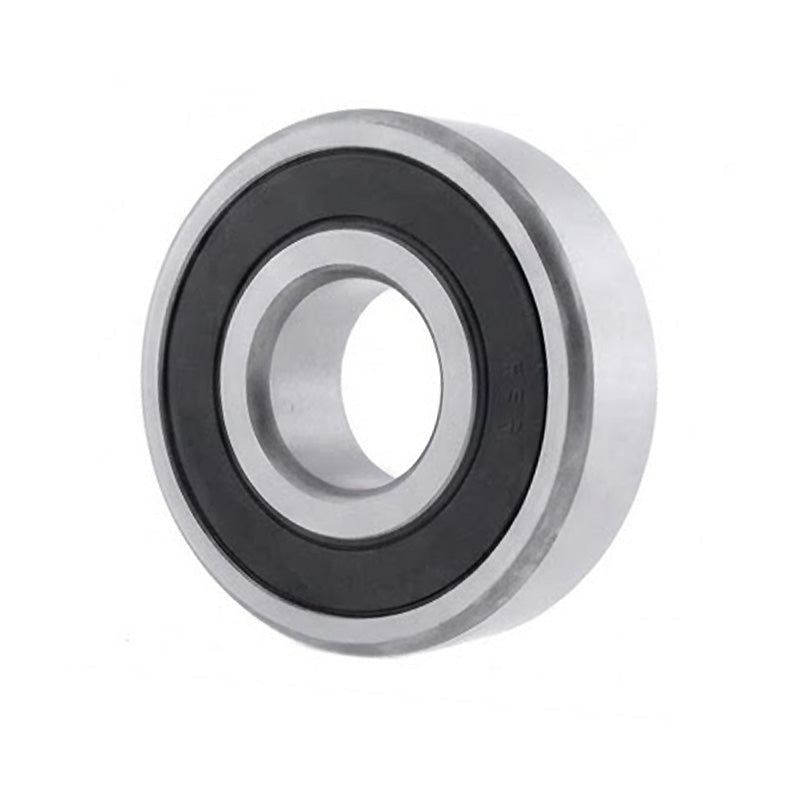

Budget 72102RS Rubber Sealed Single Row Angular Contact Ball Bearing 50x90x20mm
Budget 72102RS Rubber Sealed Single Row Angular Contact Ball Bearing 50x90x20mm
Regular price
$16.54
ex VAT
Regular price
Sale price
$16.54
ex VAT
Equivalent to: 7210B2RS
In stock
Price Break
10+
$14.72
19+
$13.89
29+
$13.73
39+
$13.56
49+
$13.40
74+
$13.23
99+
$12.41
199+
$12.24
249+
$12.07
499+
$11.91
999+
$11.58
Description
Description
Rubber Sealed Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity. Fitted with rubber seals these bearings require little or no maintenance as the pre filled lubricant is retained by the seals.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note 2: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7210B2RS
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note 2: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7210B2RS
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| r1 | 2.0mm |
| r2 | 1.0mm |
| Dynamic load | 41.368 kN |
| Static load | 31.360 kN |
| Weight | 0.454 kg |
