SKU: 7E-8Q-HK3016-NTN

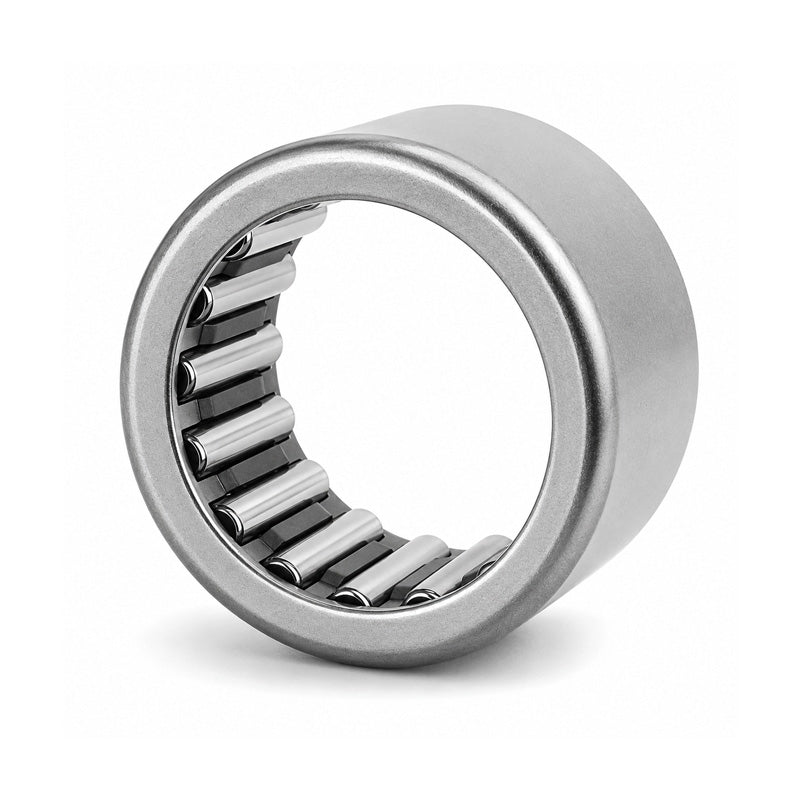

NTN 7E-8Q-HK3016 Open End Drawn Cup Needle Roller Bearing with Nitrided Cage and Hardened Inner Ring 30x37x16mm - Allow 2-3 Days
NTN 7E-8Q-HK3016 Open End Drawn Cup Needle Roller Bearing with Nitrided Cage and Hardened Inner Ring 30x37x16mm - Allow 2-3 Days
Regular price
$6.43
ex VAT
Regular price
Sale price
$6.43
ex VAT
In stock
Price Break
5+
$6.37
10+
$6.11
20+
$5.98
50+
$5.79
100+
$5.66
500+
$5.34
1000+
$4.50
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR25X30X17 |
| Cr - Dynamic load rating | 18.1 kN |
| C0r - Static load rating | 30 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
