SKU: 80-2-SD-NO11-RENOLD
Renold SD 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
Renold SD 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
$20.74
ex VAT
Regular price
Sale price
$20.74
ex VAT
In stock
Price Break
10+
$18.46
19+
$17.42
29+
$17.21
39+
$17.01
49+
$16.80
74+
$16.59
99+
$15.56
199+
$15.35
249+
$15.14
499+
$14.93
999+
$14.52
Description
Description

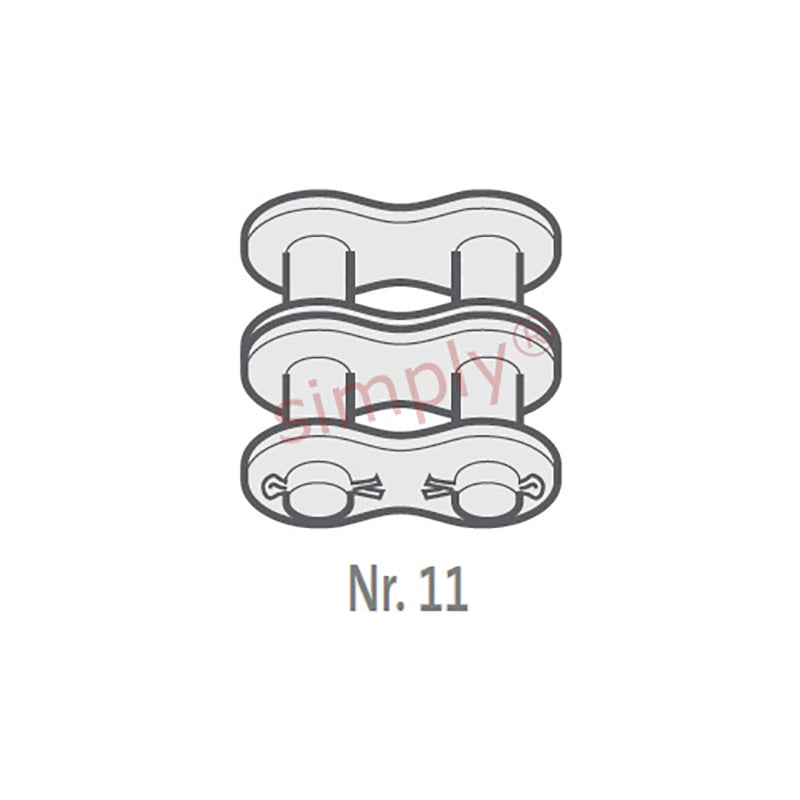

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H2) | 61.9mm |
| Connecting Link Extension max (J) | 2.3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 111200 N |
| Weight | 0.04kg/m |
