SKU: 80H-1-NO12-RENOLD
Renold 80H-1-NO12 ANSI / AS Half Link Simplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold 80H-1-NO12 ANSI / AS Half Link Simplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
$9.02
ex VAT
Regular price
Sale price
$9.02
ex VAT
Equivalent to: 80H-1-OL
In stock
Price Break
10+
$8.03
19+
$7.58
29+
$7.49
39+
$7.40
49+
$7.31
74+
$7.22
99+
$6.77
199+
$6.67
249+
$6.58
499+
$6.49
999+
$6.31
Description
Description

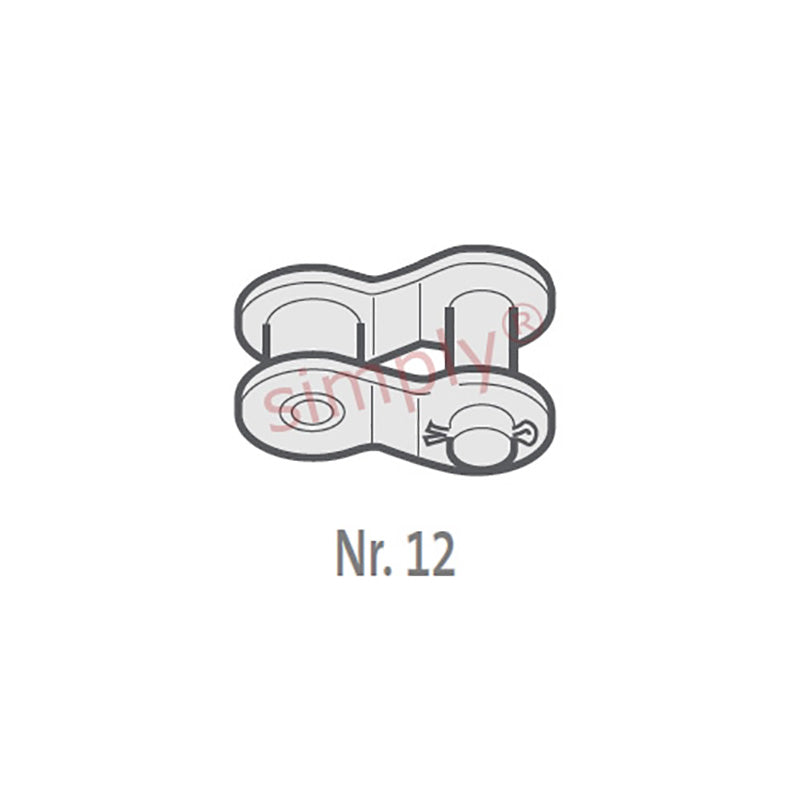

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 80H-1-OL
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 32.8mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 55600 N |
| Weight | 0.02kg/m |
