SKU: A-ASFD205D1-NTN

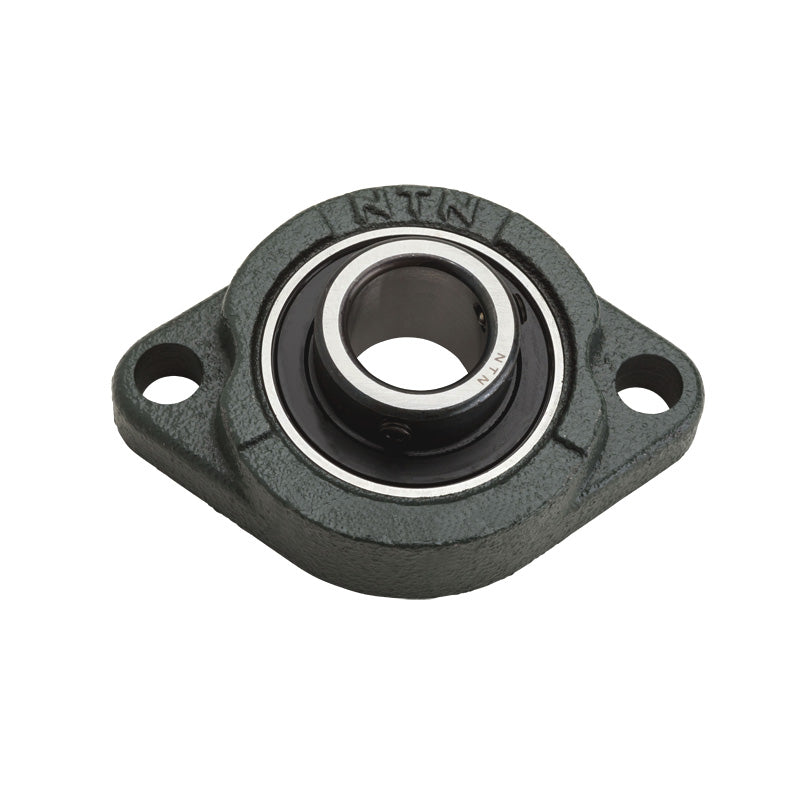

NTN A-ASFD205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
NTN A-ASFD205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
$35.69
ex VAT
Regular price
Sale price
$35.69
ex VAT
In stock
Price Break
5+
$35.33
10+
$33.91
20+
$33.19
50+
$32.12
100+
$31.41
500+
$29.62
1000+
$24.98
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- ASFD
- Bolt Hole Centres:
- 76mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 95mm |
| J | 76mm |
| A<sub>2</sub> | 9.5mm |
| A | 17mm |
| N | 10mm |
| L | 71mm |
| A<sub>0</sub> | 29mm |
| B | 27mm |
| S | 7.5mm |
| Fixing bolt | M8 |
| Mass | 0.5 kg |
