SKU: AHX310-MB

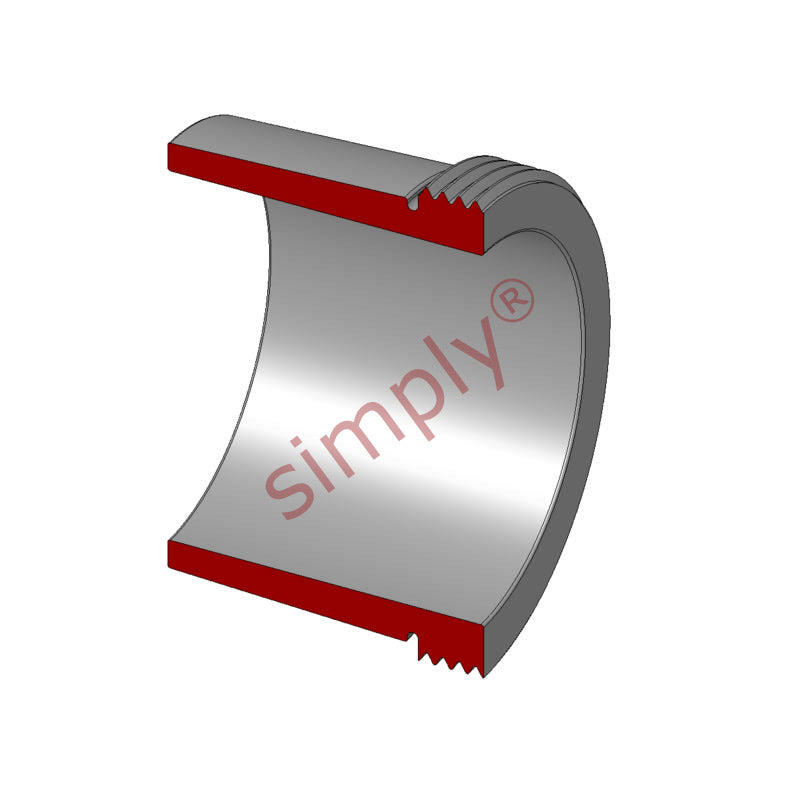

Major Brand AHX310 Withdrawal Sleeve for 45mm shaft
Major Brand AHX310 Withdrawal Sleeve for 45mm shaft
Regular price
$56.99
ex VAT
Regular price
Sale price
$56.99
ex VAT
In stock
Price Break
10+
$50.72
19+
$47.87
29+
$47.30
39+
$46.73
49+
$46.16
74+
$45.59
99+
$42.74
199+
$42.17
249+
$41.60
499+
$41.03
999+
$39.89
Description
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 50mm
- Width:
- 35mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 45mm |
| d | 50mm |
| B1 | 35mm |
| B2 | 38mm |
| G | Thread 55x2mm |
| G1 | 7mm |
| Weight | 0.13 kg |
| --- | Assembly Parts |
| Sleeve | AHX310 |
| Nut | KM11 |
| Hydraulic nut | HMV11E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2210K+taper>2210K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1310K+taper>1310K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22210K+taper>22210K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21310K+taper>21310K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210KTN9+taper>C2210KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210KV+taper>C2210KV</a> |
