SKU: ASFB203-NTN

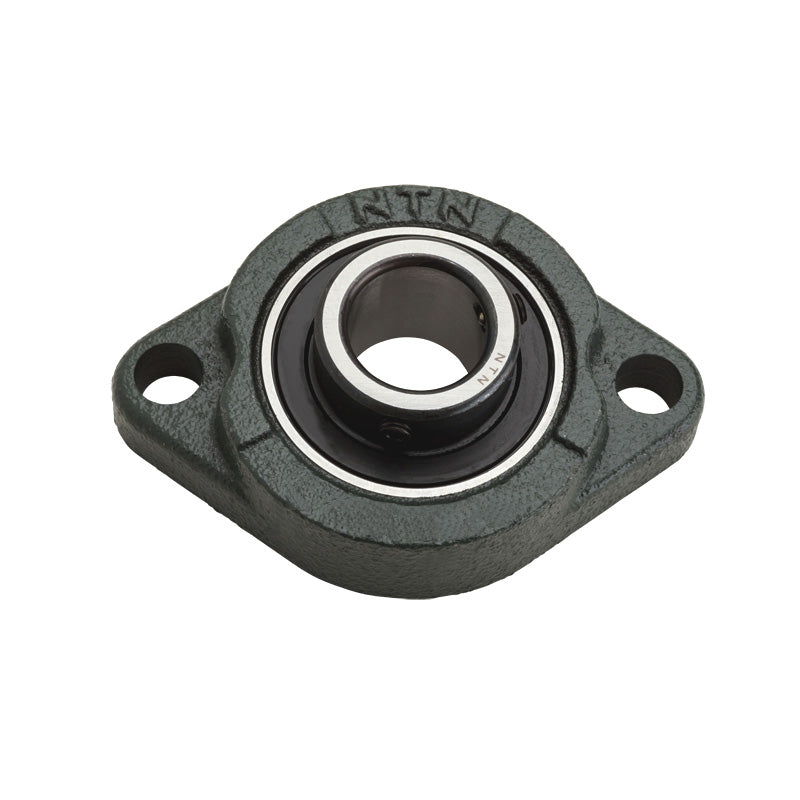

NTN ASFB203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
NTN ASFB203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
$26.76
ex VAT
Regular price
Sale price
$26.76
ex VAT
In stock
Price Break
5+
$26.49
10+
$25.42
20+
$24.89
50+
$24.08
100+
$23.55
500+
$22.21
1000+
$18.73
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- ASFB
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 81mm |
| J | 63.5mm |
| A<sub>2</sub> | 9.5mm |
| A<sub>1</sub> | 9.5mm |
| A | 18mm |
| N | 7mm |
| L | 56mm |
| A<sub>0</sub> | 25.5mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M6 |
| Mass | 0.2 kg |
