SKU: AXK0821TN-MB

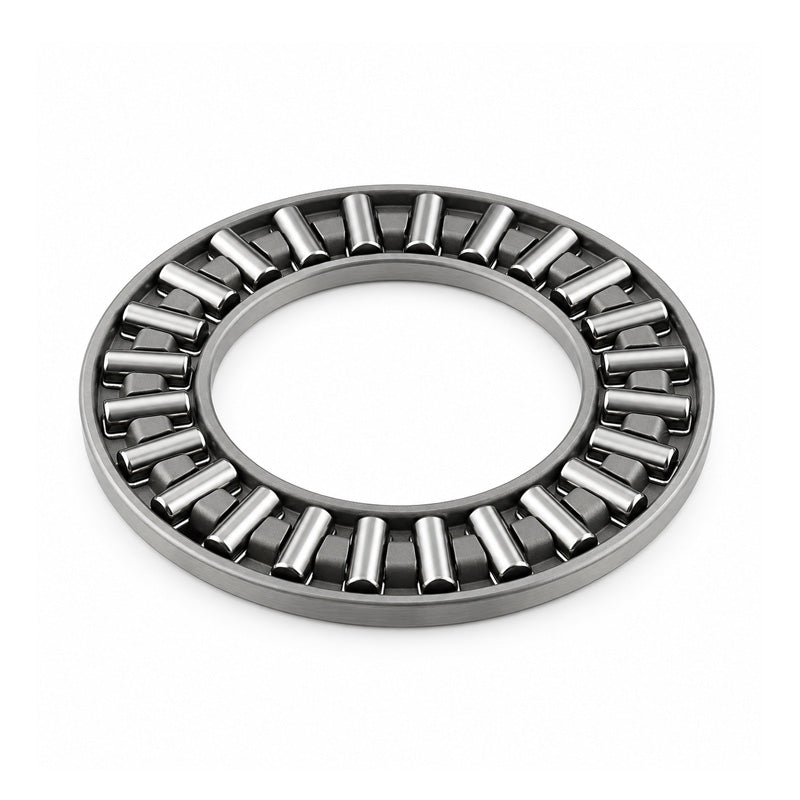

Major Brand AXK0821TN Needle Roller Cage 8x21x2mm
Major Brand AXK0821TN Needle Roller Cage 8x21x2mm
Regular price
$3.76
ex VAT
Regular price
Sale price
$3.76
ex VAT
In stock
Price Break
10+
$3.35
19+
$3.16
29+
$3.12
39+
$3.08
49+
$3.05
74+
$3.01
99+
$2.82
199+
$2.78
249+
$2.74
499+
$2.71
999+
$2.63
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 21mm
- Width:
- 2mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 21mm |
| Dw | 2mm |
| Ea | 9mm |
| Eb | 20mm |
| Dynamic load | 7200 N |
| Static load | 20000 N |
| Fatigue load limit Pu | 2200 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 5600 rpm |
| Weight (assembly) | 2 g |
| D | 21mm |
| B | 2.75mm |
