SKU: AXK1124-NTN

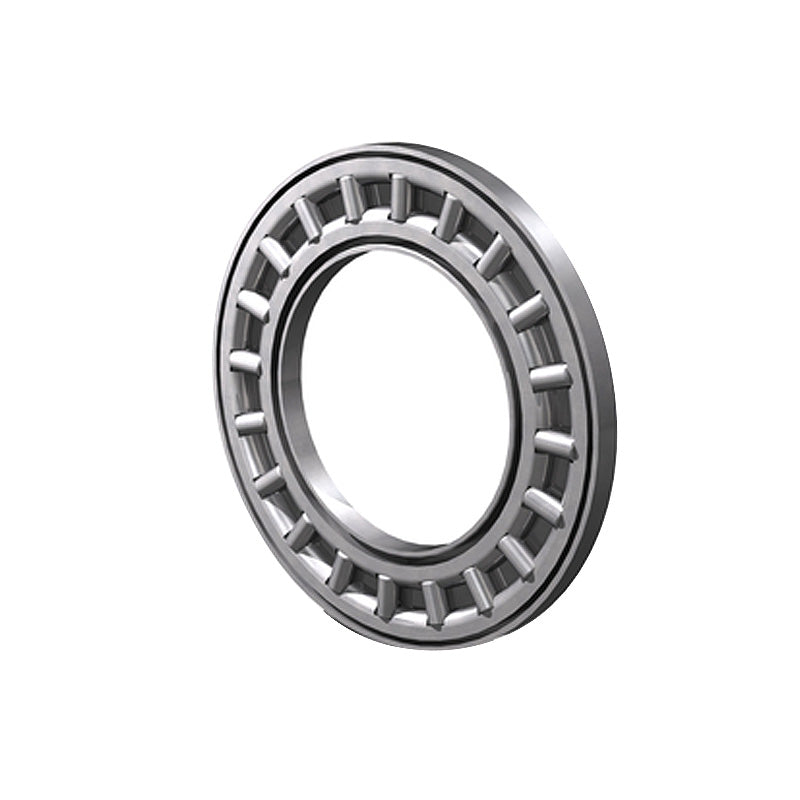

NTN AXK1124 Needle Roller Cage Only 120x155x4mm - Allow 2-3 Days
NTN AXK1124 Needle Roller Cage Only 120x155x4mm - Allow 2-3 Days
Regular price
$47.57
ex VAT
Regular price
Sale price
$47.57
ex VAT
In stock
Price Break
5+
$47.09
10+
$45.19
20+
$44.24
50+
$42.81
100+
$41.86
500+
$39.48
1000+
$33.30
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 155mm
- Width:
- 4mm
Technical
Technical
| Dc1 - Inside diameter | 120mm |
|---|---|
| Dc - Outside diameter | 155mm |
| Dw - Roller Width | 4mm |
| AS washer reference | AS1124 |
| WS inner ring reference | WS81124 |
| GS outer ring reference | GS81124 |
| Ea - Rollers reference outer diameter | 149.4mm |
| Eb - Rollers reference inner diameter | 125.5mm |
| Ca - Dynamic axial load rating | 99 kN |
| C0a - Static axial load rating | 650 kN |
| Cua - Limit axial load rating | 72 kN |
| Grease lubrication limit speed | 430 tr/min |
| Oil lubrication limit speed | 1700 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
