SKU: AXK1629-KOYO

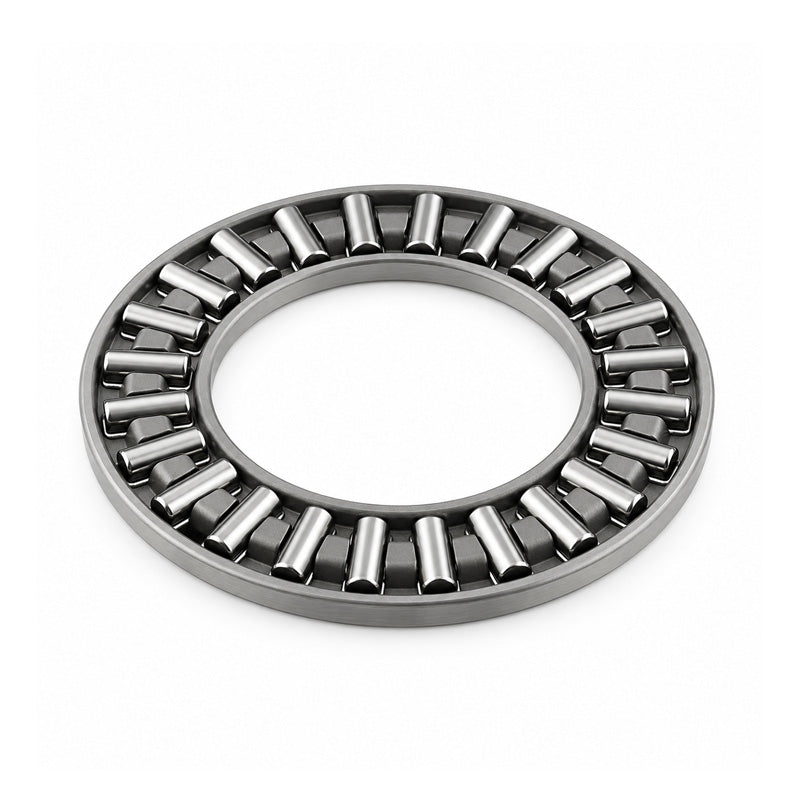

AXK1629 Koyo Needle Roller Cage 16x29x2mm
AXK1629 Koyo Needle Roller Cage 16x29x2mm
Out of stock
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 2mm
Technical
Technical
| d | 16mm |
|---|---|
| D | 29mm |
| Dw | 2mm |
| Dynamic load | 9070 N |
| Static load | 31400N |
| Raceway Washer | LS1629 |
| Thrust Washer | AS1629 |
