SKU: AXK1831

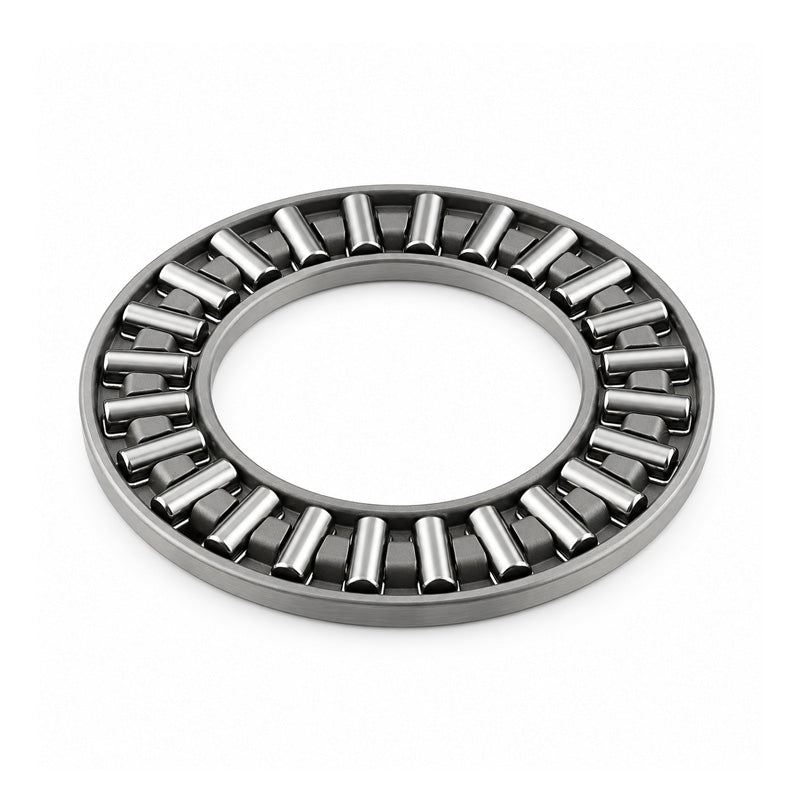

Major Brand AXK1831 Needle Roller Cage 18x31x2mm
Major Brand AXK1831 Needle Roller Cage 18x31x2mm
Regular price
$5.68
ex VAT
Regular price
Sale price
$5.68
ex VAT
In stock
Price Break
10+
$5.06
19+
$4.77
29+
$4.71
39+
$4.66
49+
$4.60
74+
$4.54
99+
$4.26
199+
$4.20
249+
$4.15
499+
$4.09
999+
$3.98
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 31mm
- Width:
- 2mm
Technical
Technical
| d | 18mm |
|---|---|
| D | 31mm |
| Dw | 2mm |
| Dynamic load | 9550 N |
| Static load | 34400N |
| Raceway Washer | LS1831 |
| Thrust Washer | AS1831 |
