SKU: AXW30-EU

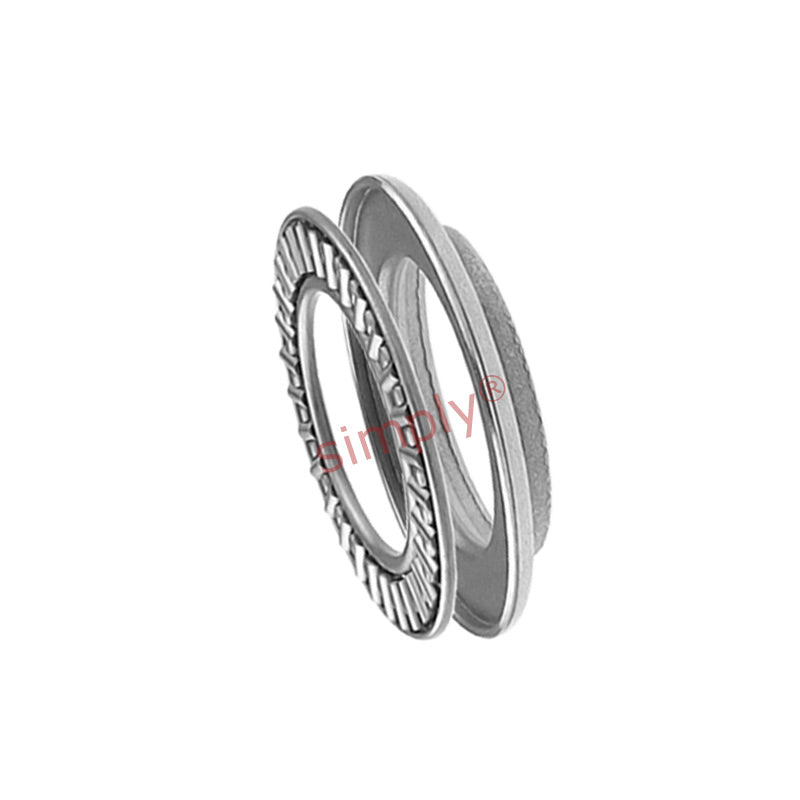

Quality Budget AXW30 Thrust Race with Centering Spigot 30x50x3.2mm
Quality Budget AXW30 Thrust Race with Centering Spigot 30x50x3.2mm
Regular price
$9.57
ex VAT
Regular price
Sale price
$9.57
ex VAT
In stock
Price Break
10+
$8.52
19+
$8.04
29+
$7.94
39+
$7.85
49+
$7.75
74+
$7.66
99+
$7.18
199+
$7.08
249+
$6.99
499+
$6.89
999+
$6.70
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 50mm
- Width:
- 3.2mm
Technical
Technical

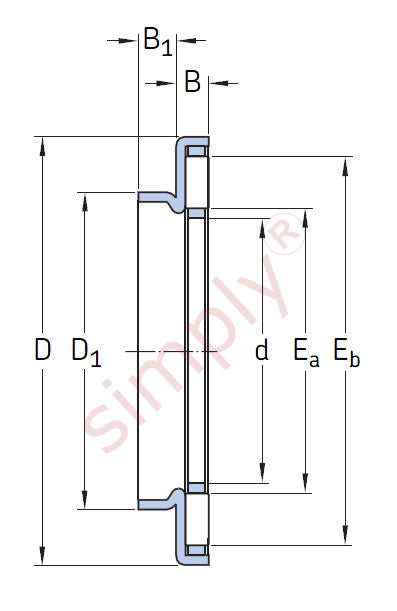

| Inside diameter | 30mm |
|---|---|
| Outside diameter | 50mm |
| B | 3.2mm |
| B1 | 4mm |
| D1 | 37mm |
| Ea | 34mm |
| Eb | 46mm |
| Weight | 22 g |
| Dynamic load | 16300 N |
| Static load | 70000 N |
| Fatigue load limit | 7100 N |
| Limiting speed | 7300 rpm |
| Reference speed | 3600 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS3047">Click Here AS3047 |
