SKU: B-24

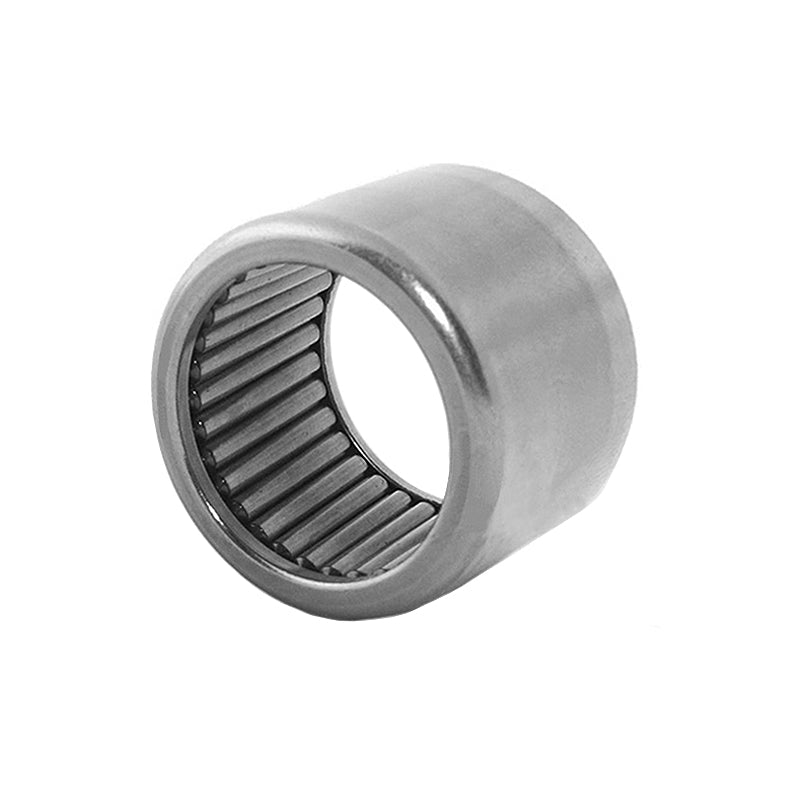

Major Brand B24 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/8x1/4x1/4 inch
Major Brand B24 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1/8x1/4x1/4 inch
Regular price
$21.82
ex VAT
Regular price
Sale price
$21.82
ex VAT
In stock
Price Break
10+
$19.42
19+
$18.33
29+
$18.11
39+
$17.89
49+
$17.67
74+
$17.46
99+
$16.37
199+
$16.15
249+
$15.93
499+
$15.71
999+
$15.27
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 3.18mm = 0.125 (1/8) inch
- Outside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Width:
- 6.35mm = 0.25 (1/4) inch
Technical
Technical
| Inside Diameter | 3.18mm = 0.125 inch |
|---|---|
| Outside Diameter | 6.35mm = 0.25 inch |
| Width | 6.35mm = 0.25 inch |
| Dynamic load C | 1.73 kN |
| Static load Co | 1.65 kN |
| S max | 3.175mm = 0.125 inch |
| S min | 3.167mm = 0.1247 inch |
| H max | 6.363mm = 0.2505 inch |
| H min | 6.35mm = 0.25 inch |
