SKU: BEM12-60-501-DURB

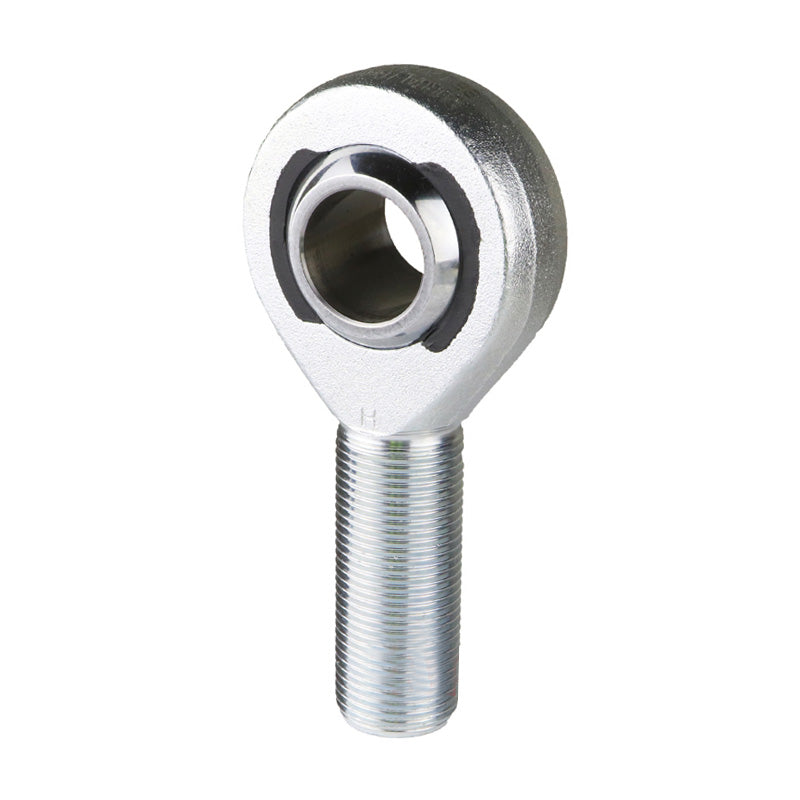

Durbal BEM12-60-501 Maintenance Free Right Hand Metric Stainless Steel / PTFE Lined Male Rod End M12 Thread
Equivalent to: GAKSR12PS SRAKB12FG
Low stock
Price Break
Description
DURBAL Heavy-Duty Stainless Steel Male Rod Ends with Integral Spherical-Plain Bearing: Threaded male rod end consisting of a forged, hardened and electropolished stainless steel housing with a polyamide-PTFE-fibreglass-compound race and a stainless steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.
Equivalent: GAKSR12PS SRAKB12FG
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE Lined
Technical
| Thread Direction | -501 (Right) |
|---|---|
| d | 12mm |
| G (Thread) | M12 |
| B | 16mm |
| C1 | 12mm |
| h1 | 54mm |
| d1 | 15.4mm |
| d2 | 32mm |
| dk | 22.17mm |
| l1 | 33mm |
| l2 | 70mm |
| l7 | 19mm |
| tilt angle ? | 13 deg |
| weight | 0.092kg |
| basic load rating dyn C | 12.4 kN |
| basic load rating stat Co | 22.3 kN |
| radial clearance CN | 0-10 µm |
