SKU: BK0408-MB

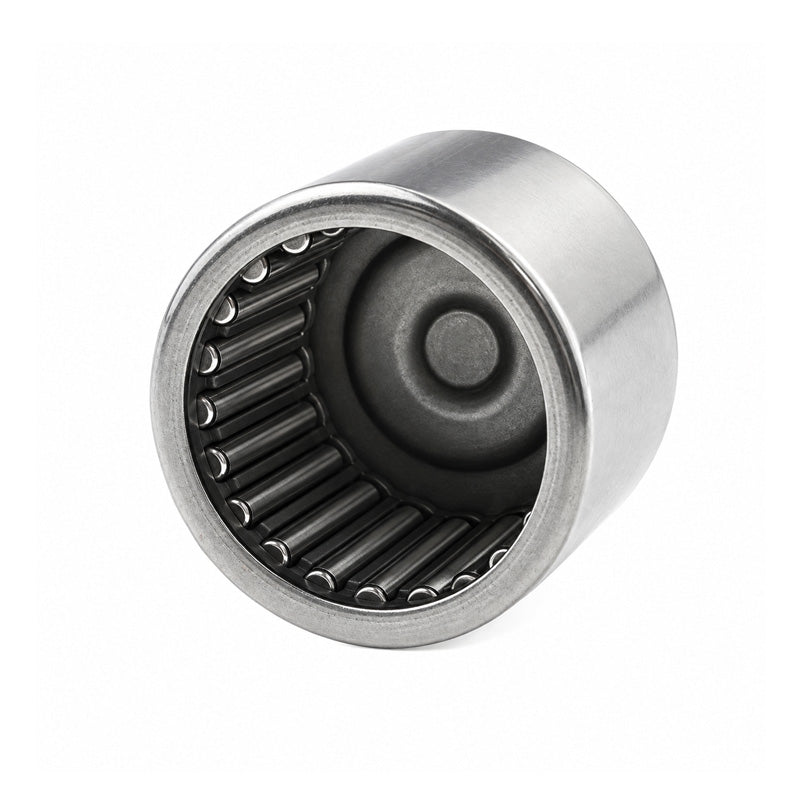

Major Brand BK0408 Drawn Cup Type Needle Roller Bearing with One Closed End 4x8x8mm
Major Brand BK0408 Drawn Cup Type Needle Roller Bearing with One Closed End 4x8x8mm
Regular price
$6.54
ex VAT
Regular price
Sale price
$6.54
ex VAT
In stock
Price Break
10+
$5.82
19+
$5.49
29+
$5.43
39+
$5.36
49+
$5.30
74+
$5.23
99+
$4.91
199+
$4.84
249+
$4.77
499+
$4.71
999+
$4.58
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 8mm
- Width:
- 8mm
Technical
Technical
| Fw | 4mm |
|---|---|
| D | 8mm |
| C | 8mm |
| Dynamic load | 1760 N |
| Static load | 1370 N |
| Fatigue load limit Pu | 140 N |
| Speed in grease | 26000 rpm |
| Speed in oil | 38000 rpm |
| C1 | 6.4mm |
| r1r2 min | 0.3mm |
| Da max | 5mm |
| ra max | 0.3mm |
| Seal | G4x8x2S |
| Weight | 2.1 g |
