SKU: BK0810-MB

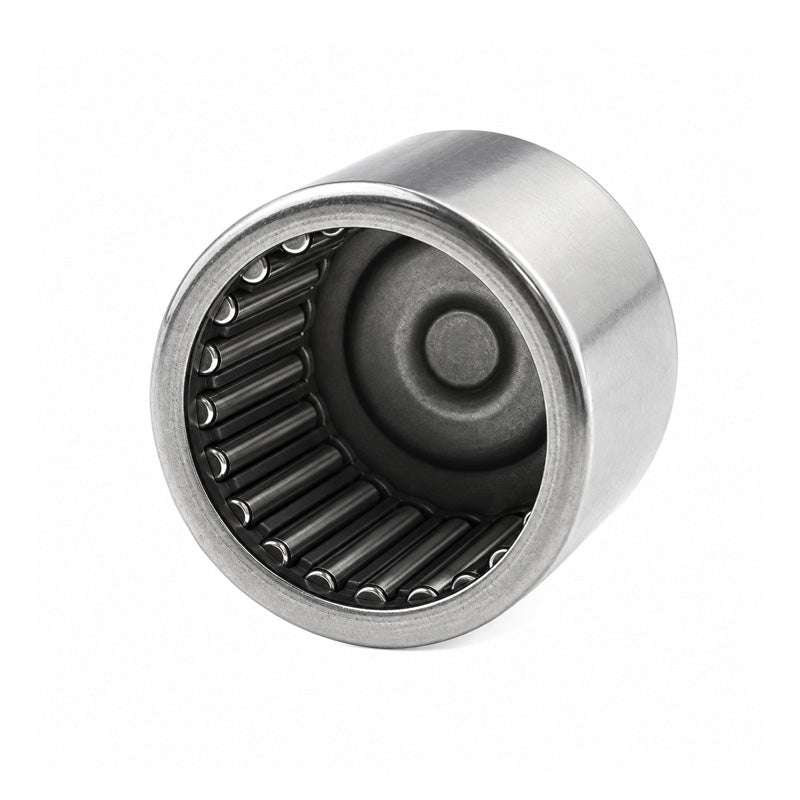

Major Brand BK0810 Drawn Cup Type Needle Roller Bearing with One Closed End 8x12x10mm
Major Brand BK0810 Drawn Cup Type Needle Roller Bearing with One Closed End 8x12x10mm
Regular price
$7.46
ex VAT
Regular price
Sale price
$7.46
ex VAT
In stock
Price Break
10+
$6.64
19+
$6.27
29+
$6.19
39+
$6.12
49+
$6.04
74+
$5.97
99+
$5.60
199+
$5.52
249+
$5.45
499+
$5.37
999+
$5.22
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 10mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 10mm |
| Dynamic load | 3690 N |
| Static load | 4050 N |
| Fatigue load limit Pu | 440 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| C1 | 8.4mm |
| r1r2 min | 0.4mm |
| Da max | 8.3mm |
| ra max | 0.4mm |
| Inner ring | IR5x8x12 |
| Seal | G8x12x3 |
| Weight | 3.4 g |
