SKU: BK1015-EU

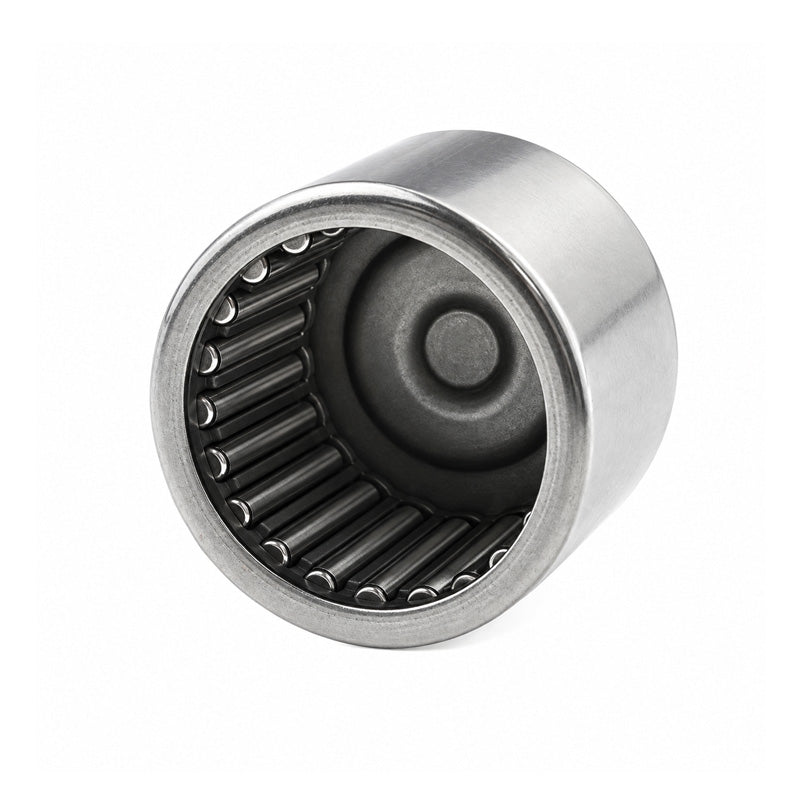

BK1015 Budget Drawn Cup Needle Roller Bearing with One Closed End 10x14x15mm
BK1015 Budget Drawn Cup Needle Roller Bearing with One Closed End 10x14x15mm
Regular price
$6.29
ex VAT
Regular price
Sale price
$6.29
ex VAT
In stock
Price Break
10+
$5.60
19+
$5.28
29+
$5.22
39+
$5.16
49+
$5.09
74+
$5.03
99+
$4.72
199+
$4.65
249+
$4.59
499+
$4.53
999+
$4.40
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 15mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 14mm |
| C | 15mm |
| Dynamic load C | 6600 N |
| Static load Co | 9000 N |
| Fatigue load limit Pu | 1020 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| C1 | 13.4mm |
| r1r2 min | 0.4mm |
| Da max | 10.3mm |
| ra max | 0.4mm |
| Inner ring | IR7x10x16 |
| Seal | G10x14x3 |
| Weight | 6.2 g |
