SKU: BK1210-EU

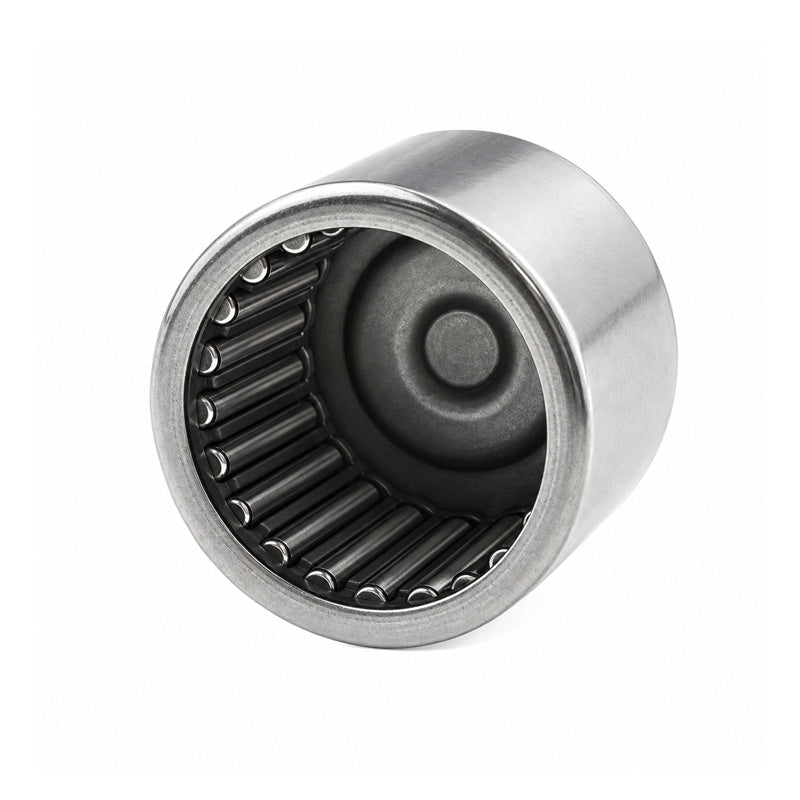

BK1210 Budget Drawn Cup Needle Roller Bearing with One Closed End 12x16x10mm
BK1210 Budget Drawn Cup Needle Roller Bearing with One Closed End 12x16x10mm
Regular price
$3.83
ex VAT
Regular price
Sale price
$3.83
ex VAT
In stock
Price Break
10+
$3.41
19+
$3.22
29+
$3.18
39+
$3.14
49+
$3.10
74+
$3.06
99+
$2.87
199+
$2.83
249+
$2.80
499+
$2.76
999+
$2.68
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 16mm
- Width:
- 10mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 16mm |
| C | 10mm |
| Dynamic load C | 4840 N |
| Static load Co | 6400 N |
| Fatigue load limit Pu | 710 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| C1 | 8.4mm |
| r1r2 min | 0.4mm |
| Da max | 12.3mm |
| ra max | 0.4mm |
| Inner ring | IR8x12x10.5 |
| Seal | G12x16x3 |
| Weight | 5.2 g |
