SKU: BK1512-MB
Major Brand BK1512 Drawn Cup Type Needle Roller Bearing with One Closed End 15x21x12mm
Major Brand BK1512 Drawn Cup Type Needle Roller Bearing with One Closed End 15x21x12mm
Regular price
$8.59
ex VAT
Regular price
Sale price
$8.59
ex VAT
In stock
Price Break
10+
$7.65
19+
$7.22
29+
$7.13
39+
$7.04
49+
$6.96
74+
$6.87
99+
$6.44
199+
$6.36
249+
$6.27
499+
$6.18
999+
$6.01
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 12mm

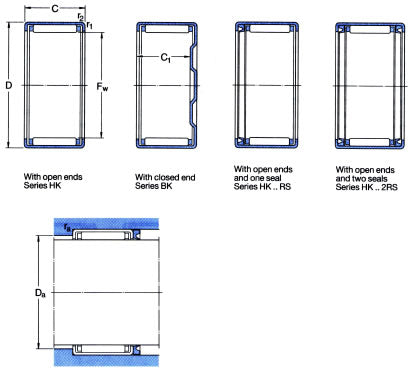

Technical
Technical
| Fw | 15mm |
|---|---|
| D | 21mm |
| C | 12mm |
| Dynamic load | 7650 N |
| Static load | 9500 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| C1 | 9.3mm |
| r1r2 min | 0.8mm |
| Da max | 16mm |
| ra max | 0.8mm |
| Inner ring | IR12x15x12.5 |
| Seal | G/SD15x21x3 |
| Weight | 13 g |
