SKU: BK2018RS-EU

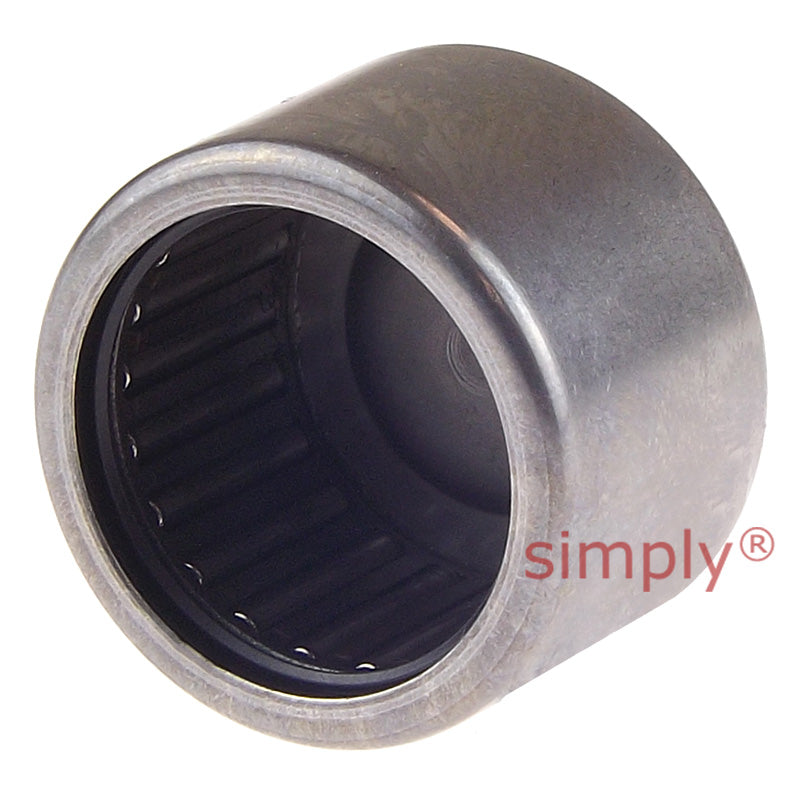

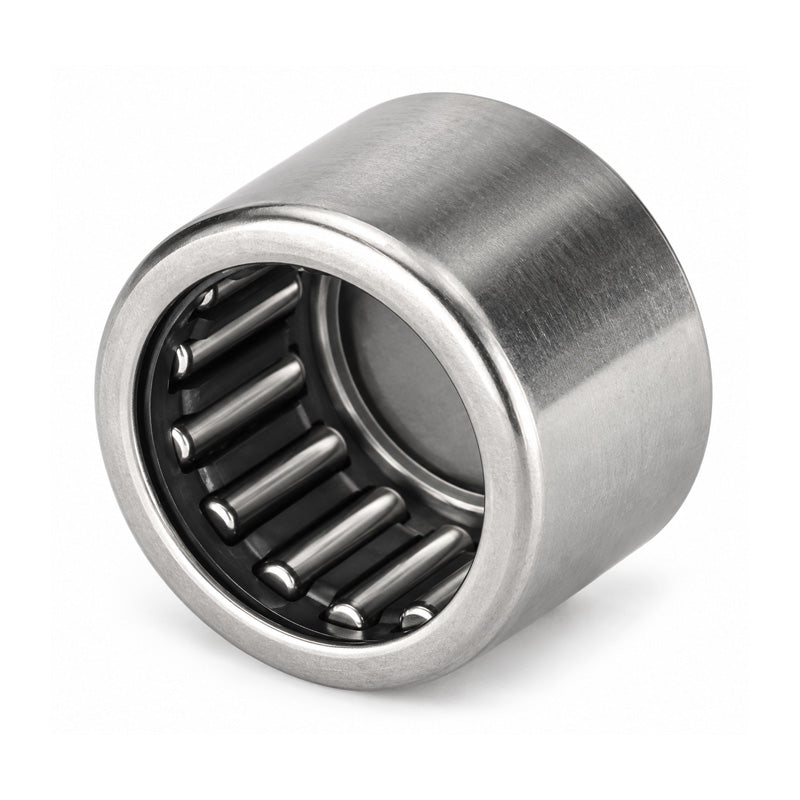

BK2018RS Budget Drawn Cup Needle Roller Bearing with One Closed End 20x26x18mm
BK2018RS Budget Drawn Cup Needle Roller Bearing with One Closed End 20x26x18mm
Regular price
$10.56
ex VAT
Regular price
Sale price
$10.56
ex VAT
In stock
Price Break
10+
$9.40
19+
$8.87
29+
$8.76
39+
$8.66
49+
$8.55
74+
$8.45
99+
$7.92
199+
$7.81
249+
$7.71
499+
$7.60
999+
$7.39
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 18mm |
| Dynamic load C | 12300 N |
| Static load Co | 20400 N |
| Fatigue load limit Pu | 2360 N |
| Speed in grease | 9000 rpm |
| C1 | 15.3mm |
| r1r2 min | 0.8mm |
| Da max | 21mm |
| ra max | 0.8mm |
| Inner ring | LR17x20x16.5 |
| Weight | 24 g |
