SKU: BK2020-EU

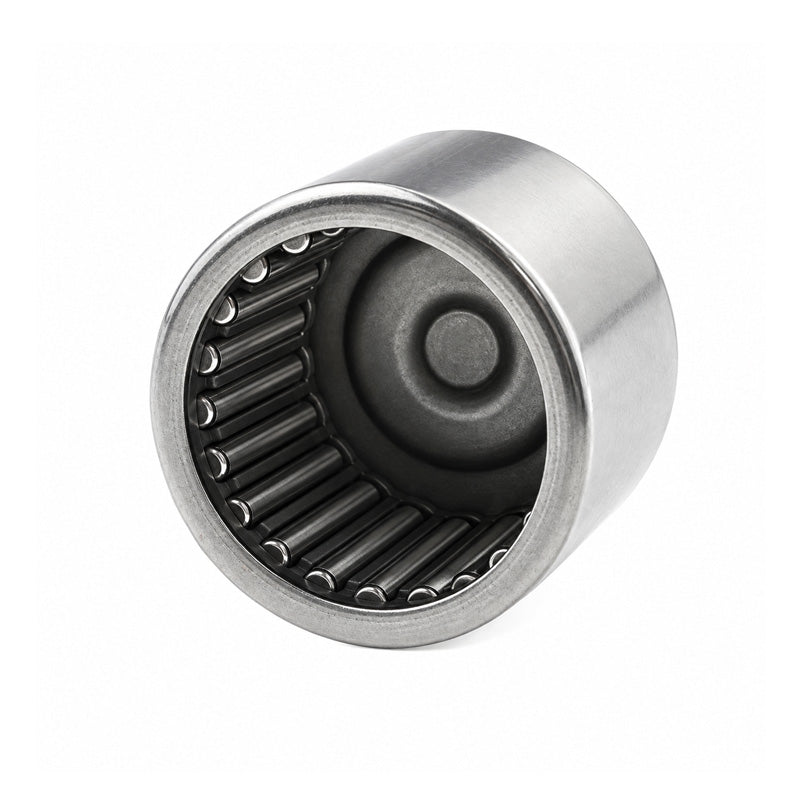

BK2020 Budget Drawn Cup Needle Roller Bearing with One Closed End 20x26x20mm
BK2020 Budget Drawn Cup Needle Roller Bearing with One Closed End 20x26x20mm
Regular price
$8.63
ex VAT
Regular price
Sale price
$8.63
ex VAT
In stock
Price Break
10+
$7.68
19+
$7.25
29+
$7.16
39+
$7.08
49+
$6.99
74+
$6.90
99+
$6.47
199+
$6.39
249+
$6.30
499+
$6.21
999+
$6.04
Couldn't load pickup availability
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 20mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 20mm |
| Dynamic load C | 15100 N |
| Static load Co | 26500 N |
| Fatigue load limit Pu | 3150 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| C1 | 17.3mm |
| r1r2 min | 0.8mm |
| Da max | 20.8mm |
| ra max | 0.8mm |
| Inner ring | LR17x20x20.5 |
| Seal | G/SD20x26x4 |
| Weight | 27 g |
