SKU: BK2518RS-EU

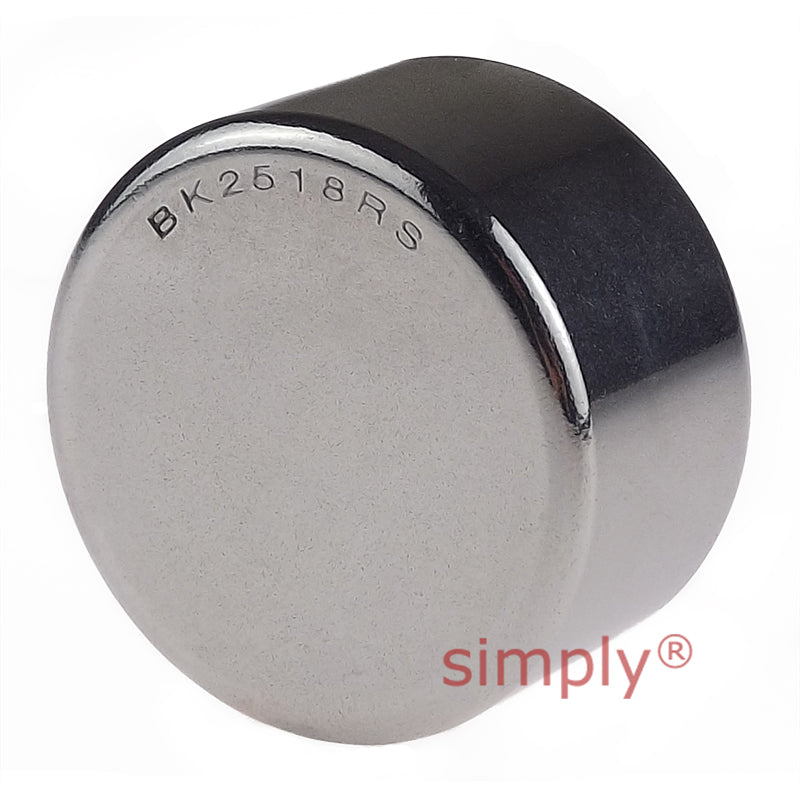

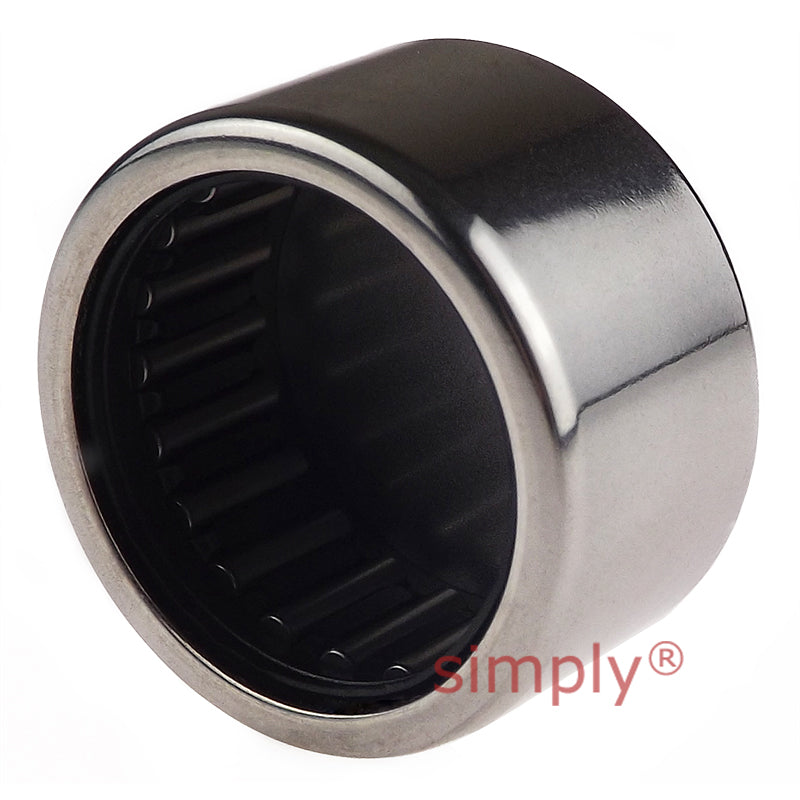

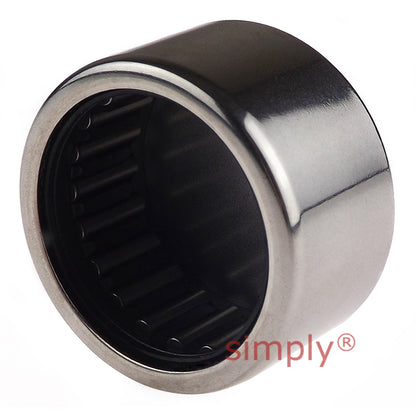

BK2518RS Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x18mm
BK2518RS Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x18mm
Regular price
$11.64
ex VAT
Regular price
Sale price
$11.64
ex VAT
In stock
Price Break
10+
$10.36
19+
$9.78
29+
$9.66
39+
$9.54
49+
$9.43
74+
$9.31
99+
$8.73
199+
$8.61
249+
$8.50
499+
$8.38
999+
$8.15
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 18mm |
| Dynamic load C | 15100 N |
| Static load Co | 24000 N |
| Fatigue load limit Pu | 2850 N |
| Speed in grease | 7000 rpm |
| C1 | 15.3mm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | LR20x25x16.5 |
| Weight | 34 g |
