SKU: BK2520-EU

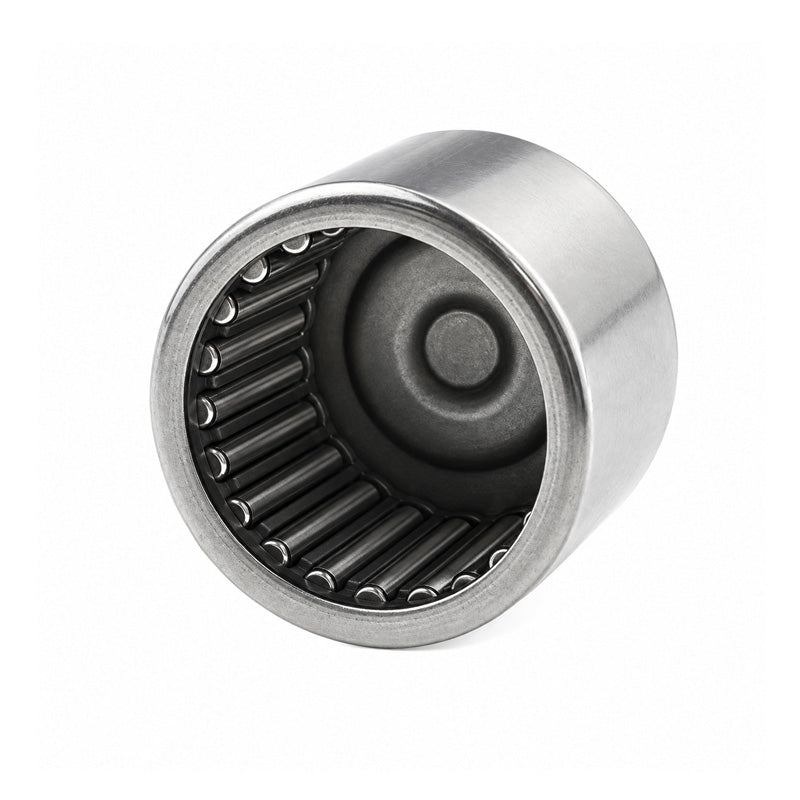

BK2520 Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x20mm
BK2520 Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x20mm
Regular price
$8.94
ex VAT
Regular price
Sale price
$8.94
ex VAT
In stock
Price Break
10+
$7.96
19+
$7.51
29+
$7.42
39+
$7.33
49+
$7.24
74+
$7.15
99+
$6.71
199+
$6.62
249+
$6.53
499+
$6.44
999+
$6.26
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 20mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 20mm |
| Dynamic load C | 19000 N |
| Static load Co | 32500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| C1 | 17.3mm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | IR20x25x20.5 |
| Seal | G25x32x4 |
| Weight | 38 g |
