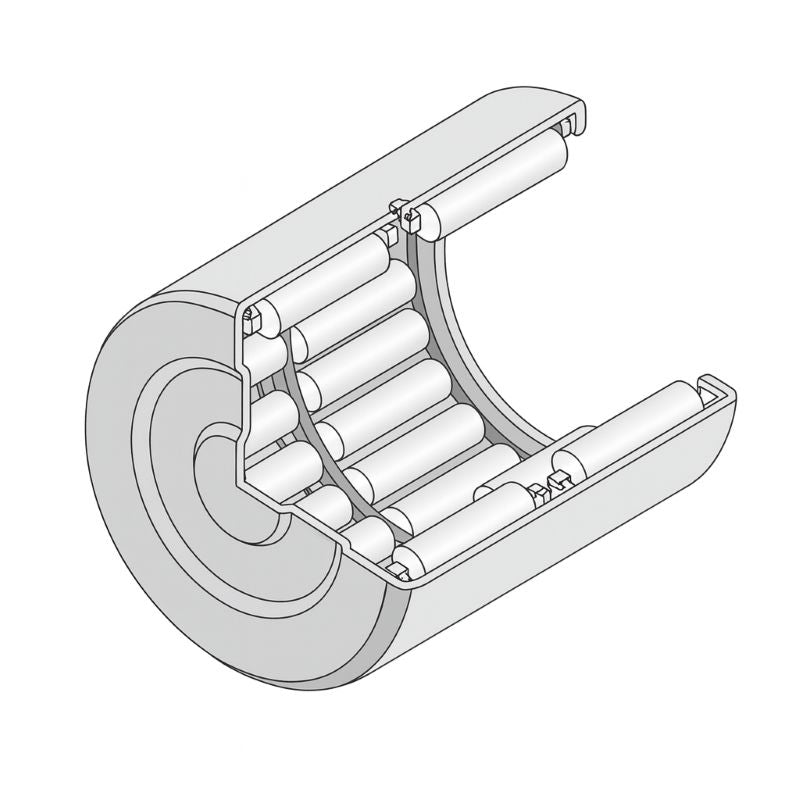

NTN BK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 25x32x38mm
NTN BK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 25x32x38mm
Regular price
$11.74
ex VAT
Regular price
Sale price
$11.74
ex VAT
In stock
Price Break
10+
$10.45
19+
$9.86
29+
$9.74
39+
$9.63
49+
$9.51
74+
$9.39
99+
$8.81
199+
$8.69
249+
$8.57
499+
$8.45
999+
$8.22
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 38mm
Technical
Technical
| Fw - Under rollers diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Width of bearing, drawn cup or outer ring | 38mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR20X25X38.5 |
| Cr - Dynamic load rating | 35 kN |
| C0r - Static load rating | 65.5 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
