SKU: BK3012-EU

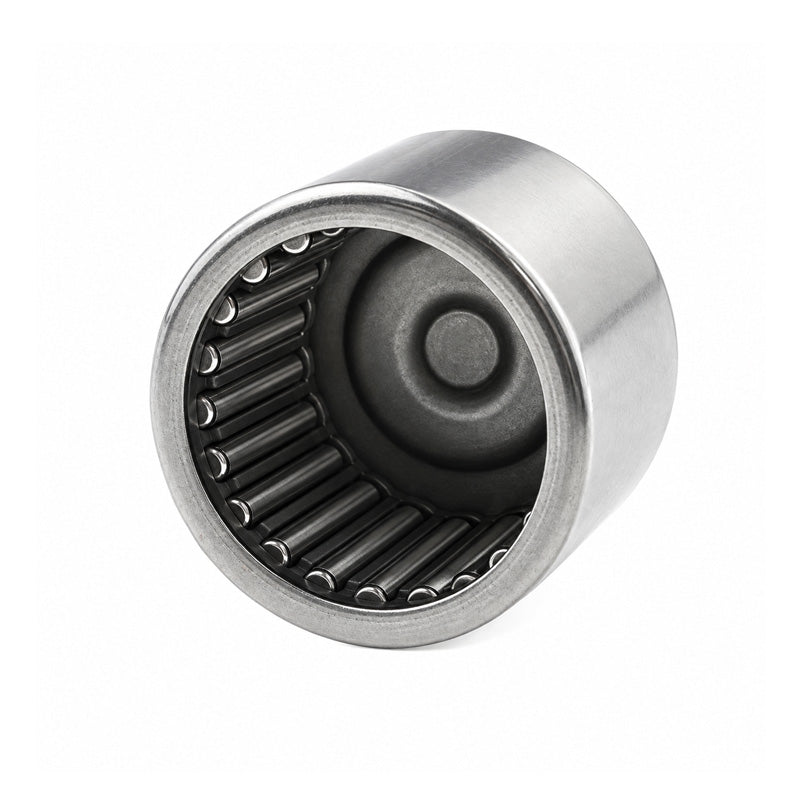

BK3012 Budget Drawn Cup Needle Roller Bearing with One Closed End 30x37x12mm
BK3012 Budget Drawn Cup Needle Roller Bearing with One Closed End 30x37x12mm
Regular price
$20.68
ex VAT
Regular price
Sale price
$20.68
ex VAT
In stock
Price Break
10+
$18.41
19+
$17.37
29+
$17.16
39+
$16.96
49+
$16.75
74+
$16.54
99+
$15.51
199+
$15.30
249+
$15.10
499+
$14.89
999+
$14.48
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 37mm |
| C | 12mm |
| Dynamic load C | 11700 N |
| Static load Co | 18300 N |
| Fatigue load limit Pu | 2120 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| C1 | 9.3mm |
| r1r2 min | 0.8mm |
| Da max | 32mm |
| ra max | 0.8mm |
| Seal | G/SD30x37x4 |
| Weight | 28 g |
