SKU: BP3S-140-495-TRI-SNR

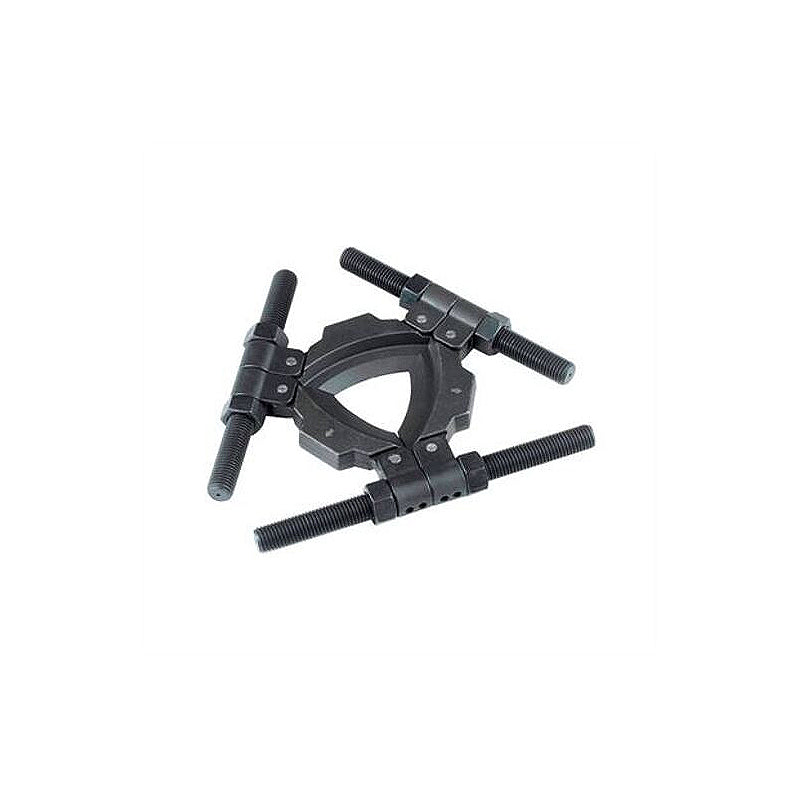

SNR BP3S 140-495 Tri-Section Pulling Plate 140x495x61mm - Allow 2-3 Days
SNR BP3S 140-495 Tri-Section Pulling Plate 140x495x61mm - Allow 2-3 Days
Regular price
$4,180.72
ex VAT
Regular price
Sale price
$4,180.72
ex VAT
In stock
Price Break
10+
$3,720.84
19+
$3,511.80
29+
$3,470.00
39+
$3,428.19
49+
$3,386.38
74+
$3,344.58
99+
$3,135.54
199+
$3,093.73
249+
$3,051.93
499+
$3,010.12
999+
$2,926.50
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 30000kg |
|---|---|
| Minimum Shaft Diameter A1 | 140mm |
| Maximum Shaft Diameter | 495mm |
| Max Spread B | 660mm |
| Length D | 600mm |
| Thread E | 1 inch - 14 UNF |
| Thickness F | 61mm |
| Material | Forged Steel Alloy |
| Weight | 41kg |
