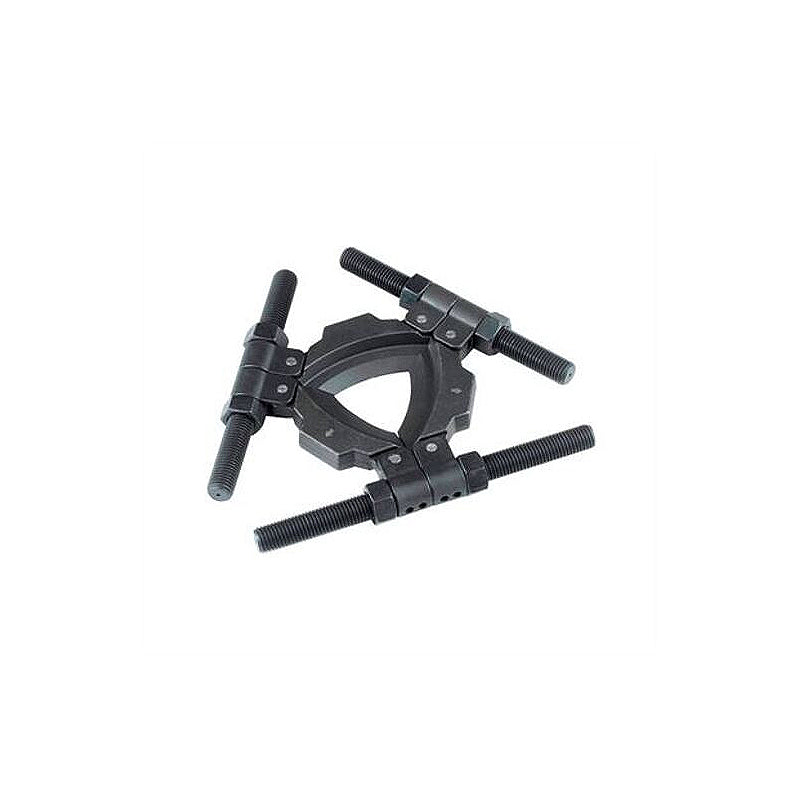

SNR BP3S 26-160 Tri-Section Pulling Plate 26x160x8mm - Allow 2-3 Days
SNR BP3S 26-160 Tri-Section Pulling Plate 26x160x8mm - Allow 2-3 Days
Regular price
$435.51
ex VAT
Regular price
Sale price
$435.51
ex VAT
In stock
Price Break
10+
$387.60
19+
$365.83
29+
$361.47
39+
$357.12
49+
$352.76
74+
$348.41
99+
$326.63
199+
$322.28
249+
$317.92
499+
$313.57
999+
$304.86
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

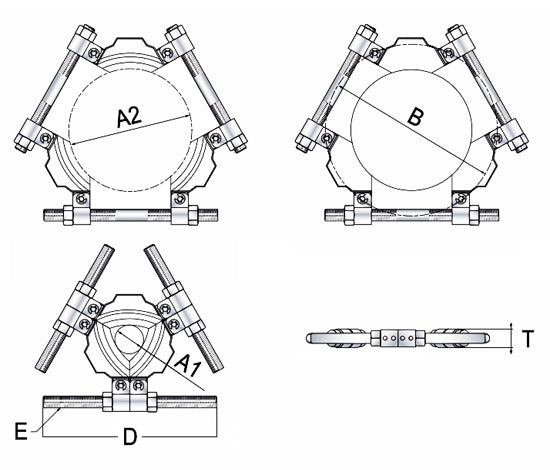

| Capacity | 4000kg |
|---|---|
| Minimum Shaft Diameter A1 | 26mm |
| Maximum Shaft Diameter | 160mm |
| Max Spread B | 216mm |
| Length D | 240mm |
| Thread E | 5/8 inch - 11 UNC |
| Thickness F | 8mm |
| Material | Forged Steel Alloy |
| Weight | 3.5kg |
