SKU: BP3S-90-340-TRI-SNR

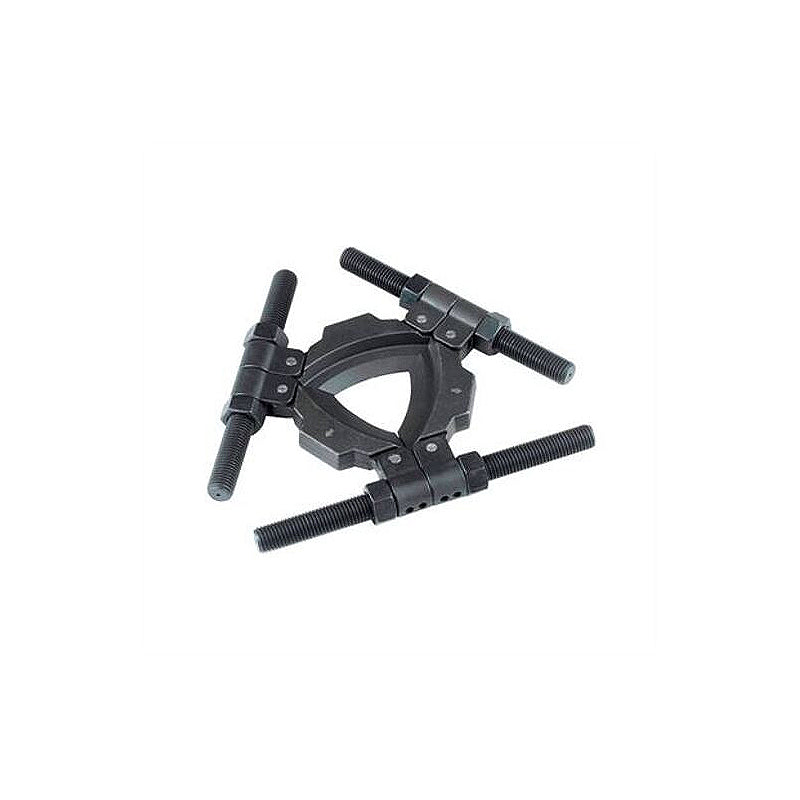

SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
Regular price
$1,447.71
ex VAT
Regular price
Sale price
$1,447.71
ex VAT
In stock
Price Break
10+
$1,288.46
19+
$1,216.08
29+
$1,201.60
39+
$1,187.12
49+
$1,172.65
74+
$1,158.17
99+
$1,085.78
199+
$1,071.31
249+
$1,056.83
499+
$1,042.35
999+
$1,013.40
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 12000kg |
|---|---|
| Minimum Shaft Diameter A1 | 90mm |
| Maximum Shaft Diameter | 340mm |
| Max Spread B | 460mm |
| Length D | 430mm |
| Thread E | 7/8 inch - 16 UNF |
| Thickness F | 45mm |
| Material | Forged Steel Alloy |
| Weight | 16.5kg |
