Description
Description

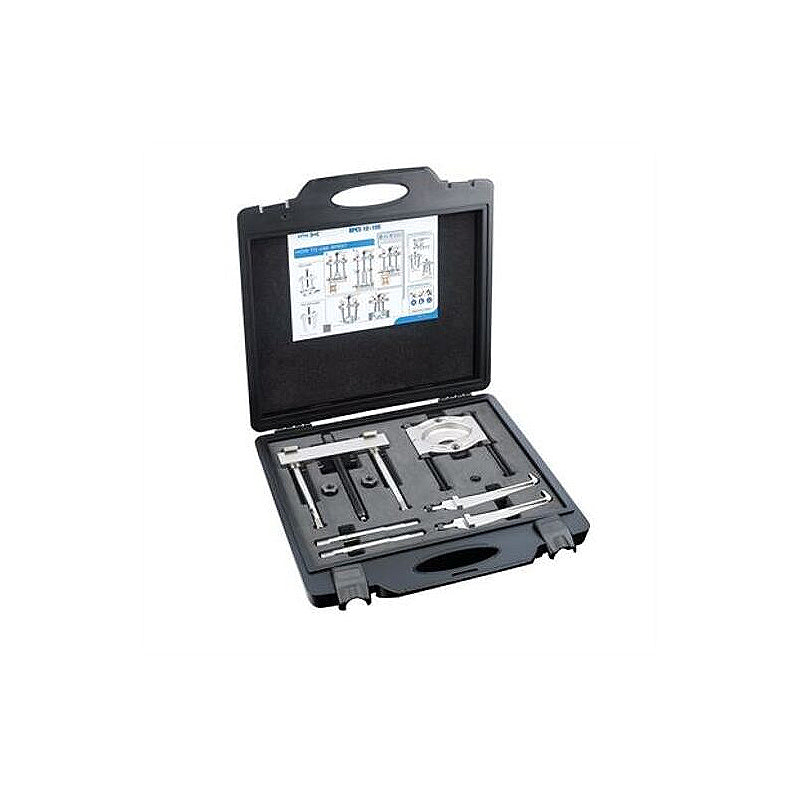

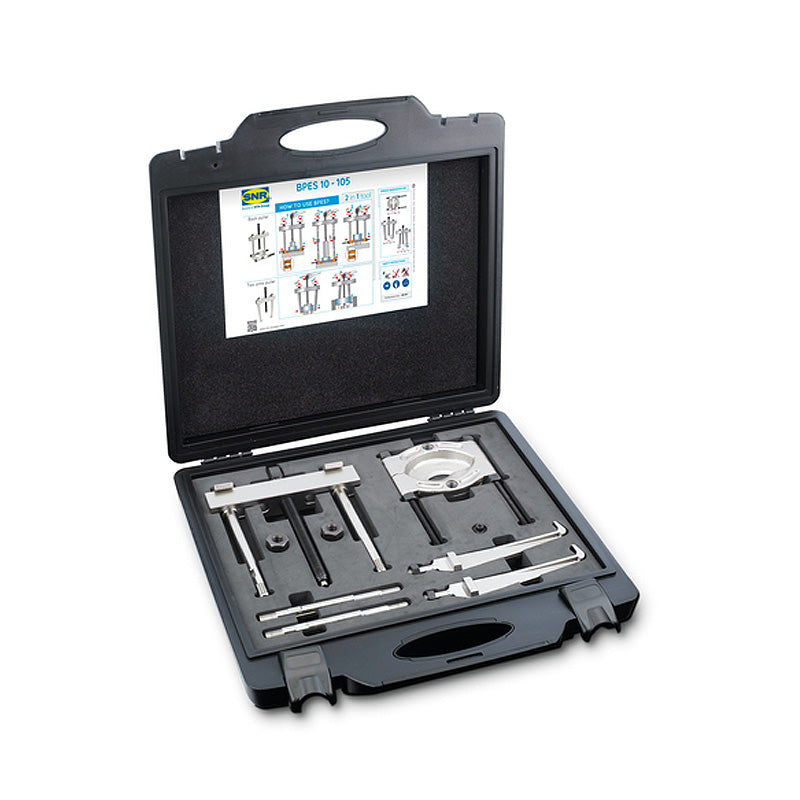

SNR BPES Back Puller Kit: This back puller is both a puller and separator which is an essential tool for extraction by internal or external gripping. The seperator allows for removal of a tight-fitting bearing ring in contact with a shoulder.
Benefits: High-quality and multi-functional.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

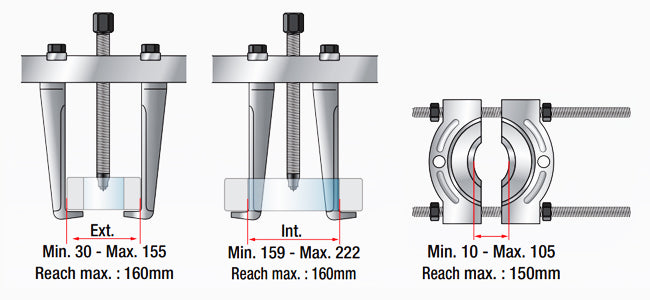

| Capacity | 10000kg |
|---|---|
| Separator Shaft Diameter Range | 10mm - 105mm |
| Separator Outside Diameter Range | Maximum of 175mm |
| Separator Max Reach | 150mm |
| Internal Gripper Puller Bore Diameter Range | 159mm - 222mm |
| Internal Gripper Puller Maximum Reach | 160mm |
| External Gripper Puller Outside Diameter Range | 30mm - 155mm |
| External Gripper Puller Maximum Reach | 160mm |
| Case Dimensions | 490x500x130mm |
| Contents | x1 Adjustable Bridge, x1 Separator, x2 Removable Puller Arms, x2 Extensions, x1 Tip Protector, x2 Coupling Nuts |
| Weight | 11kg |
