SKU: C-UCFS312D1-NTN

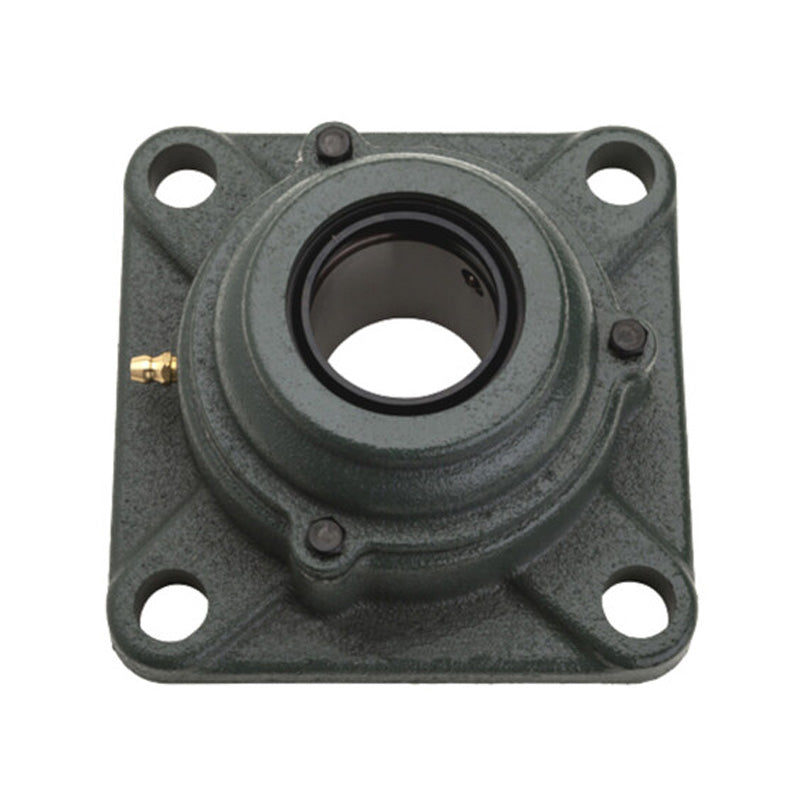

NTN C-UCFS312D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFS312D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$356.94
ex VAT
Regular price
Sale price
$356.94
ex VAT
In stock
Price Break
5+
$353.37
10+
$339.09
20+
$331.95
50+
$321.25
100+
$314.11
500+
$296.26
1000+
$249.86
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFS
- Bolt Hole Centres:
- 150mm
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| L | 195mm |
| J | 150mm |
| A<sub>2</sub> | 19mm |
| N | 23mm |
| A<sub>3</sub> | 14mm |
| A<sub>1</sub> | 22mm |
| H<sub>3</sub> | 160mm |
| B | 71mm |
| S | 26mm |
| Fixing bolt | M20 |
| A<sub>5</sub> | 100mm |
| Mass | 8.4 kg |
