SKU: C-UCFS314D1-NTN

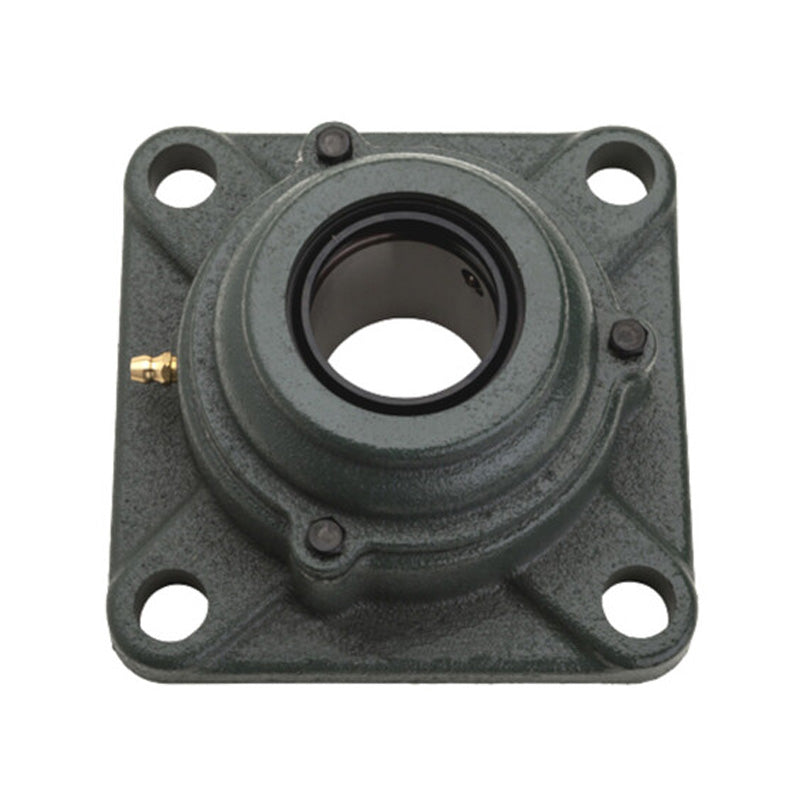

NTN C-UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$243.67
ex VAT
Regular price
Sale price
$243.67
ex VAT
In stock
Price Break
10+
$216.87
19+
$204.68
29+
$202.25
39+
$199.81
49+
$197.37
74+
$194.94
99+
$182.75
199+
$180.32
249+
$177.88
499+
$175.44
999+
$170.57
Couldn't load pickup availability
Description
Description

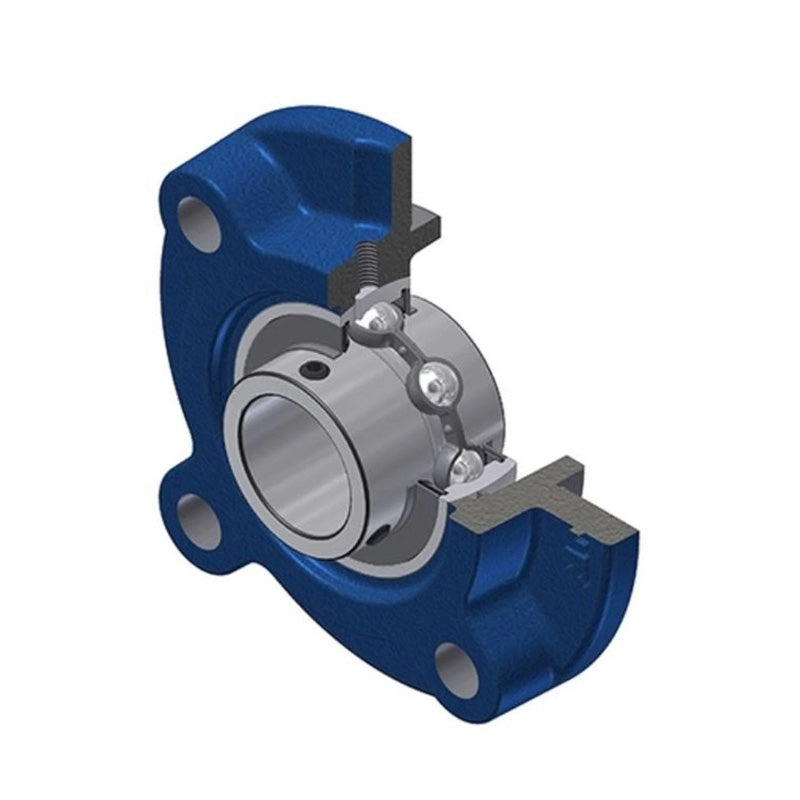

UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFS
- Bolt Hole Centres:
- 178mm
Technical
Technical
| Shaft diameter | 70mm |
|---|---|
| L | 226mm |
| J | 178mm |
| A<sub>2</sub> | 18mm |
| N | 25mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 25mm |
| H<sub>3</sub> | 185mm |
| B | 78mm |
| S | 33mm |
| Fixing bolt | M22 |
| A<sub>5</sub> | 106mm |
| Mass | 12 kg |
