SKU: CM-UCFS310D1-NTN

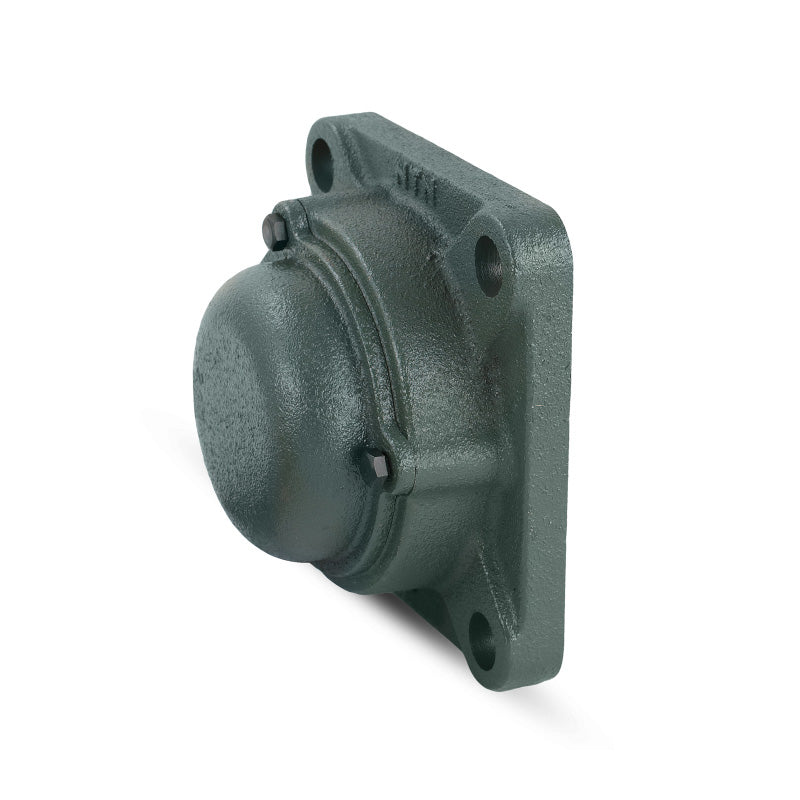

NTN CM-UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
$238.03
ex VAT
Regular price
Sale price
$238.03
ex VAT
In stock
Price Break
5+
$235.65
10+
$226.13
20+
$221.37
50+
$214.23
100+
$209.47
500+
$197.56
1000+
$166.62
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFS
- Bolt Hole Centres:
- 132mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 175mm |
| J | 132mm |
| A<sub>2</sub> | 16mm |
| N | 23mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 19mm |
| H<sub>3</sub> | 140mm |
| B | 61mm |
| S | 22mm |
| Fixing bolt | M20 |
| t | 15mm |
| A<sub>5</sub> | 88mm |
| Mass | 6.2 kg |
