SKU: CNBH-48-SB

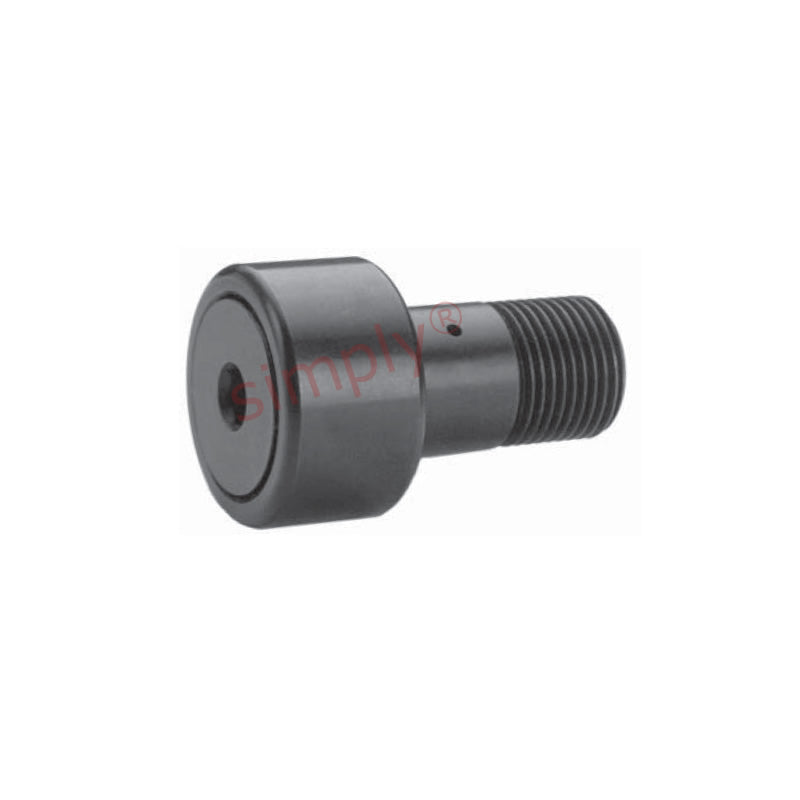

Major Brand CNBH48SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter
Major Brand CNBH48SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter
Regular price
$58.10
ex VAT
Regular price
Sale price
$58.10
ex VAT
Equivalent to: CFH-1-1/2-SB H-48-LW HR-1-1/2-XB CRHSB-24 CRH24VBUU
In stock
Price Break
10+
$51.71
19+
$48.80
29+
$48.22
39+
$47.64
49+
$47.06
74+
$46.48
99+
$43.58
199+
$42.99
249+
$42.41
499+
$41.83
999+
$40.67
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CFH-1-1/2-SB H-48-LW HR-1-1/2-XB CRHSB-24 CRH24VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
- Pitch:
- UNF 7/8-14
Technical
Technical
| A | 1.5 inch |
|---|---|
| B | 0.875 inch |
| C | 0.875 inch |
| D | 1.5 inch |
| E | 0.75 inch |
| Thread class 2A F | 7/8-14 UNF |
| G | 3/8 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 1-3/32 inch |
| Recommended bore | 0.875 inch |
| Recommended torque | 1500 lbf-in |
| Max static capacity | 11280 lbs |
| Basic dynamic rating | 4840 lbs |
