SKU: CSA.205

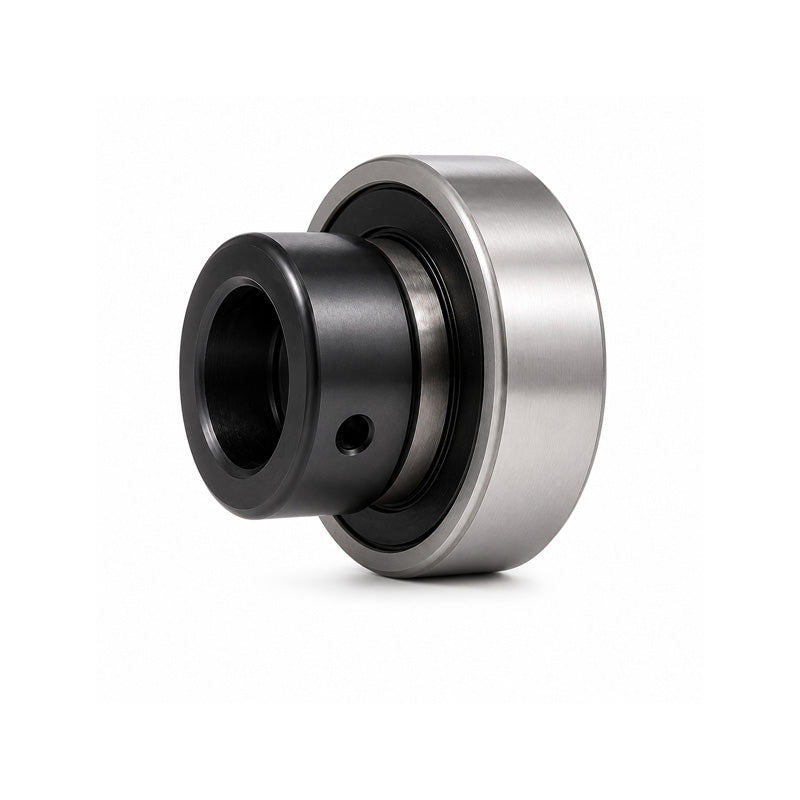

CSA205 Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
CSA205 Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
Regular price
$13.89
ex VAT
Regular price
Sale price
$13.89
ex VAT
In stock
Price Break
10+
$12.36
19+
$11.67
29+
$11.53
39+
$11.39
49+
$11.25
74+
$11.11
99+
$10.42
199+
$10.28
249+
$10.14
499+
$10.00
999+
$9.72
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- CSA
Technical
Technical
| d | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.5mm |
| m | 14mm |
| Bi | 31mm |
| k | 38.1mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.22 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
