SKU: CSA.206

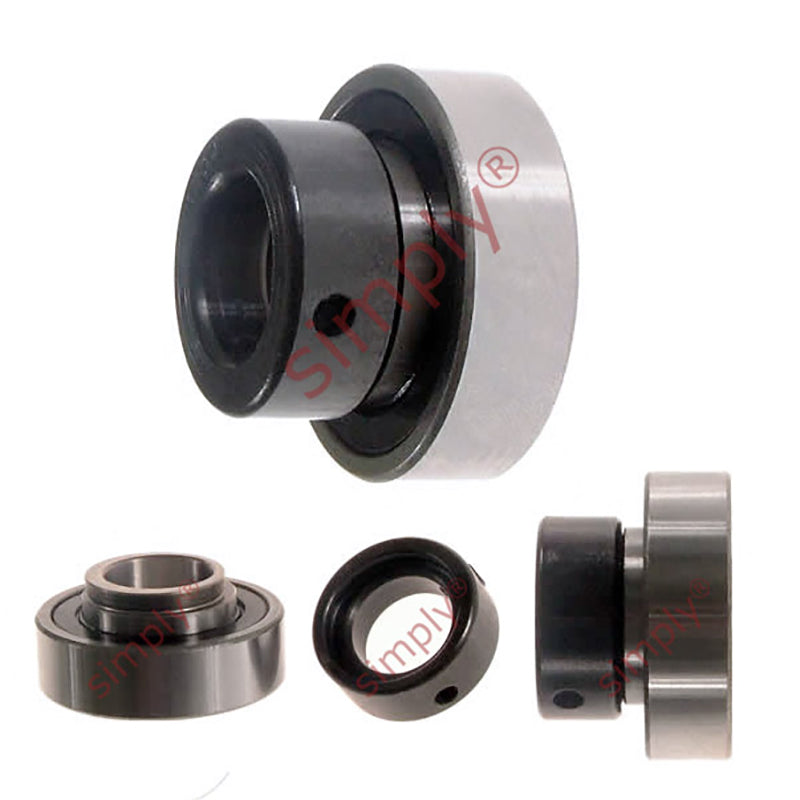

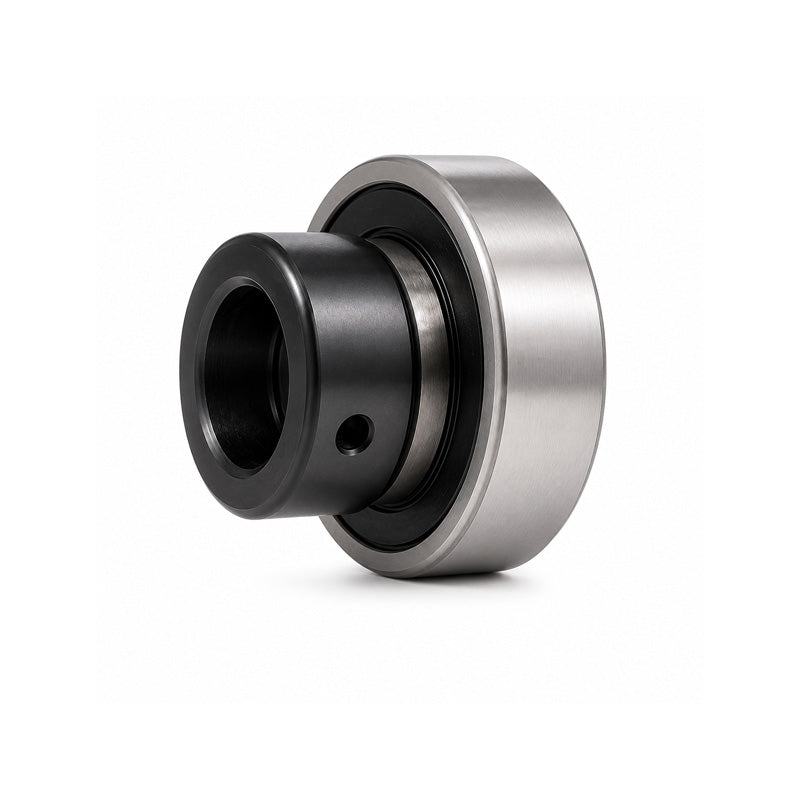

CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia
CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia
Regular price
$16.96
ex VAT
Regular price
Sale price
$16.96
ex VAT
In stock
Price Break
10+
$15.09
19+
$14.25
29+
$14.08
39+
$13.91
49+
$13.74
74+
$13.57
99+
$12.72
199+
$12.55
249+
$12.38
499+
$12.21
999+
$11.87
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 30mm |
|---|---|
| Be | 16mm |
| D | 62mm |
| z | 23.8mm |
| n | 8mm |
| m | 15.8mm |
| Bi | 35.7mm |
| k | 44.5mm |
| H | 15.9mm |
| G | 6mm |
| h | 5mm |
| Grub screw | M8X1.0 |
| Weight | 0.3 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
