SKU: CSA.212

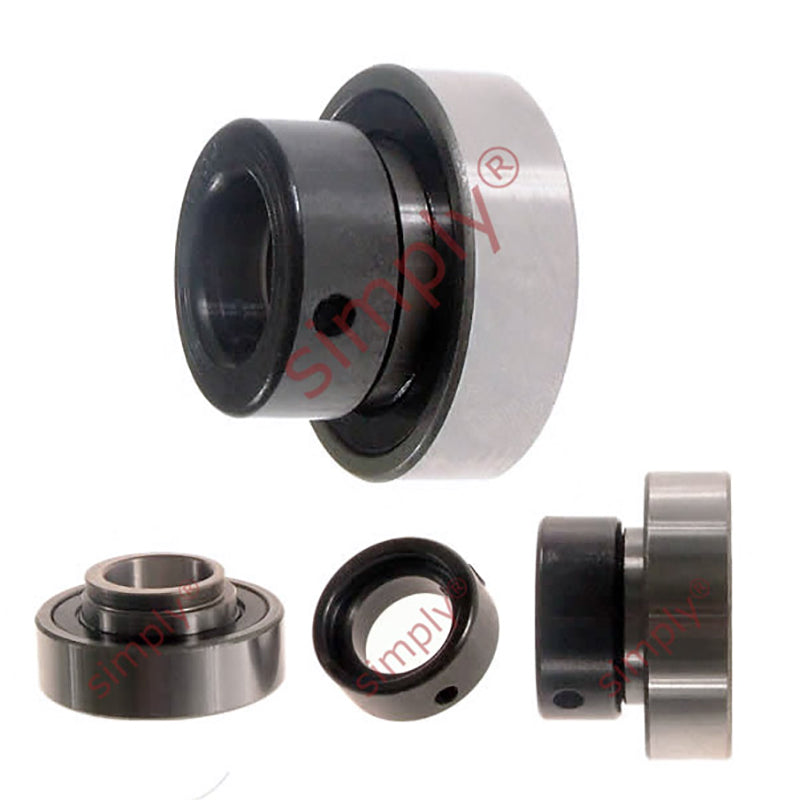

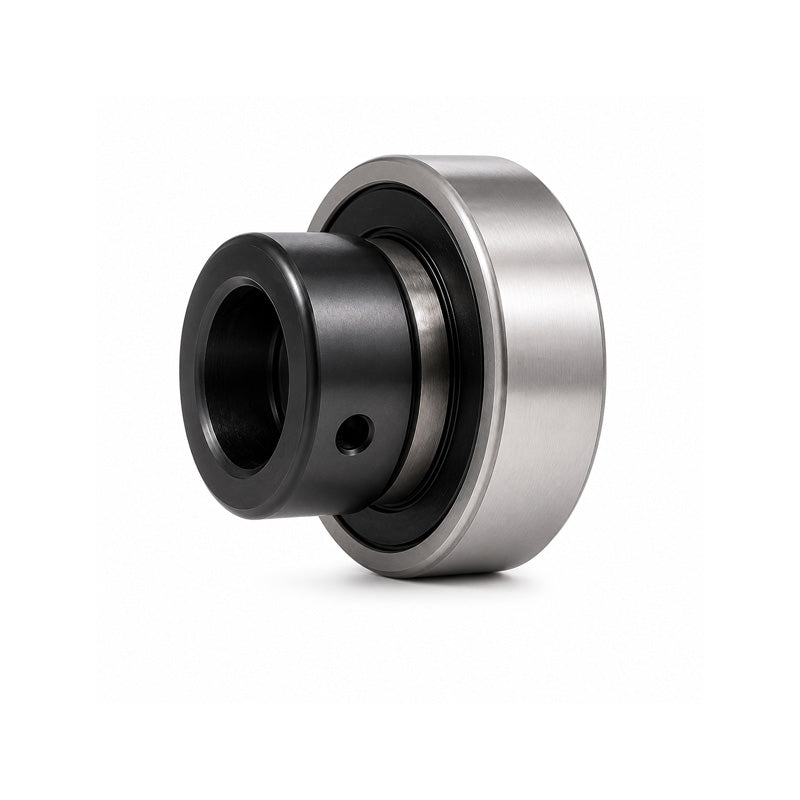

CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
Regular price
$50.32
ex VAT
Regular price
Sale price
$50.32
ex VAT
In stock
Price Break
10+
$44.78
19+
$42.27
29+
$41.77
39+
$41.26
49+
$40.76
74+
$40.26
99+
$37.74
199+
$37.24
249+
$36.73
499+
$36.23
999+
$35.22
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- CSA
Technical
Technical
| d | 60mm |
|---|---|
| Be | 24mm |
| D | 110mm |
| z | 33.4mm |
| n | 12mm |
| m | 21.4mm |
| Bi | 53.1mm |
| k | 84.2mm |
| H | 22.3mm |
| G | 8mm |
| h | 8mm |
| Grub screw | M10X1.0 |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 2960 kgf |
