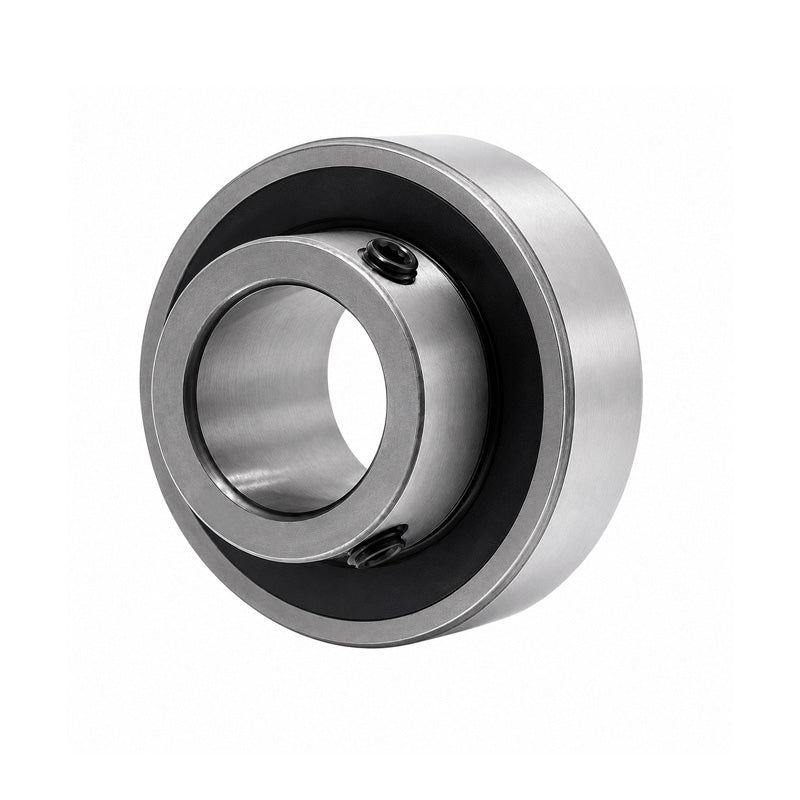

CSB203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
CSB203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
Regular price
$8.96
ex VAT
Regular price
Sale price
$8.96
ex VAT
In stock
Price Break
10+
$7.97
19+
$7.53
29+
$7.44
39+
$7.35
49+
$7.26
74+
$7.17
99+
$6.72
199+
$6.63
249+
$6.54
499+
$6.45
999+
$6.27
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 17mm |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | M5x0.8 |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
