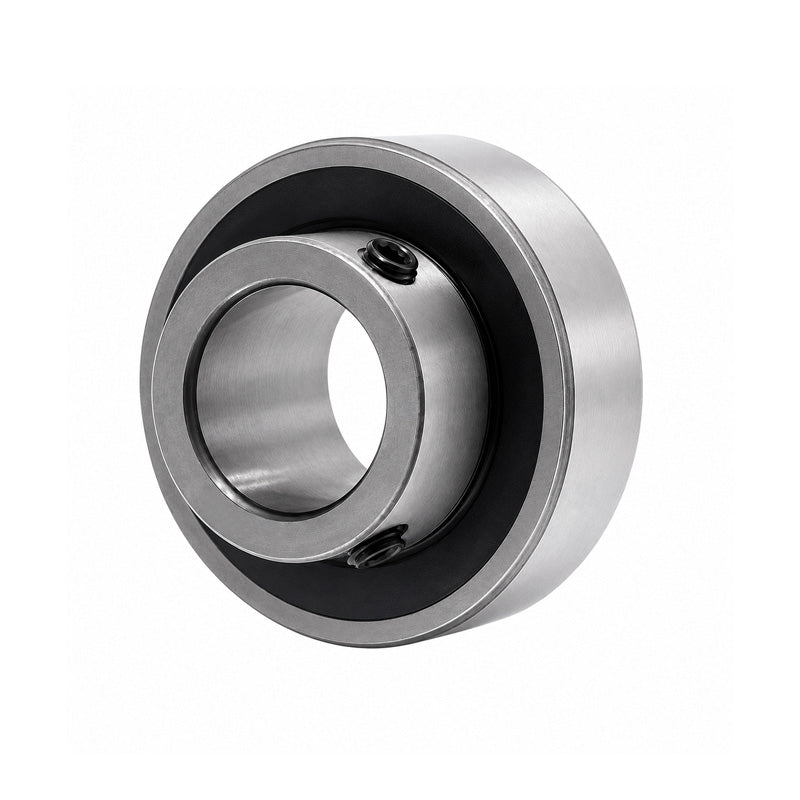

CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
$17.70
ex VAT
Regular price
Sale price
$17.70
ex VAT
In stock
Price Break
10+
$15.75
19+
$14.87
29+
$14.69
39+
$14.51
49+
$14.34
74+
$14.16
99+
$13.28
199+
$13.10
249+
$12.92
499+
$12.74
999+
$12.39
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
