SKU: CSB.208

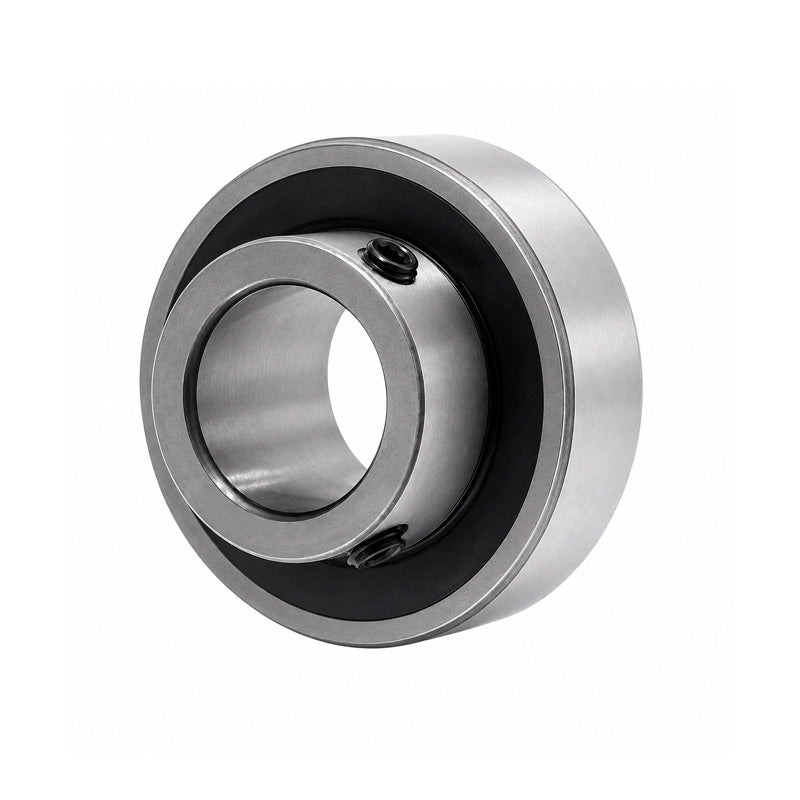

CSB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
CSB208 Metric Bearing Insert with 40mm Bore 80mm Outside Dia
Regular price
$15.33
ex VAT
Regular price
Sale price
$15.33
ex VAT
In stock
Price Break
10+
$13.64
19+
$12.88
29+
$12.72
39+
$12.57
49+
$12.42
74+
$12.26
99+
$11.50
199+
$11.34
249+
$11.19
499+
$11.04
999+
$10.73
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- CSB
Technical
Technical
| d | 40mm |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | M8X1.0 |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
