SKU: CSB.208-24

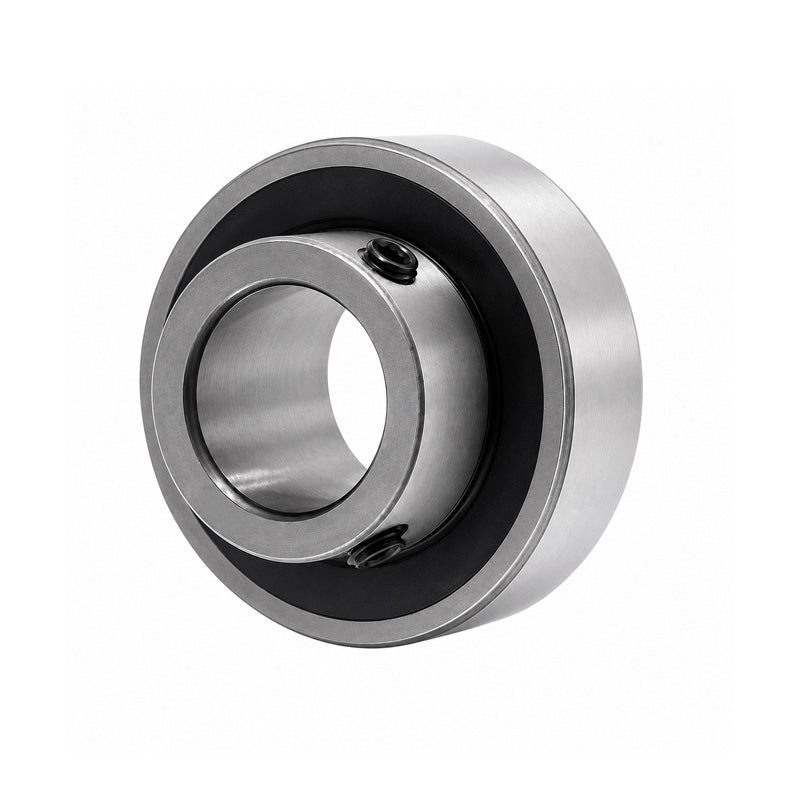

CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
CSB208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
$14.27
ex VAT
Regular price
Sale price
$14.27
ex VAT
In stock
Price Break
10+
$12.70
19+
$11.99
29+
$11.84
39+
$11.70
49+
$11.56
74+
$11.42
99+
$10.70
199+
$10.56
249+
$10.42
499+
$10.27
999+
$9.99
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- CSB
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
