SKU: CSB.209

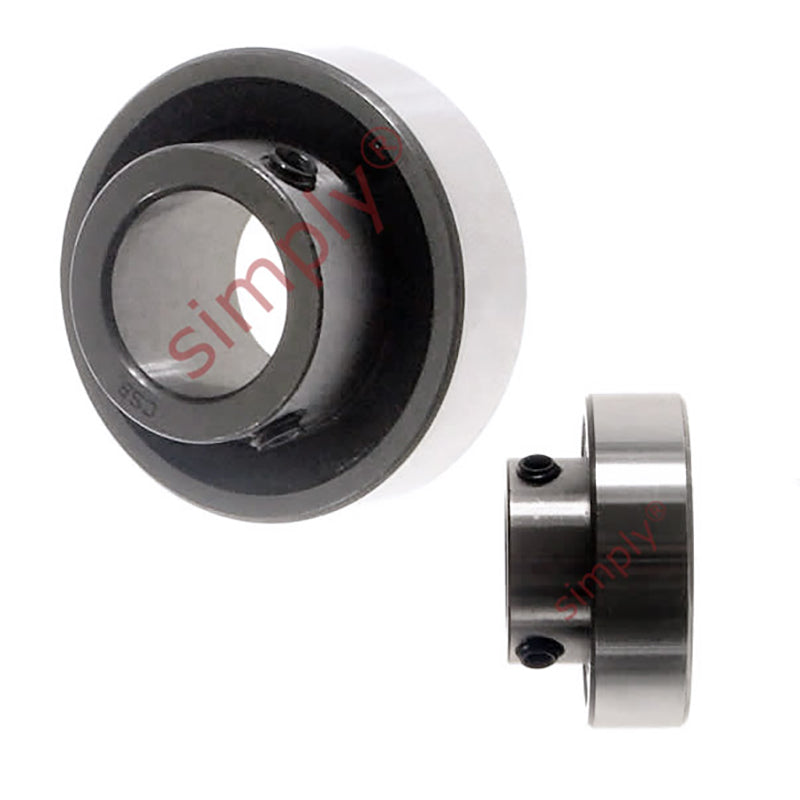

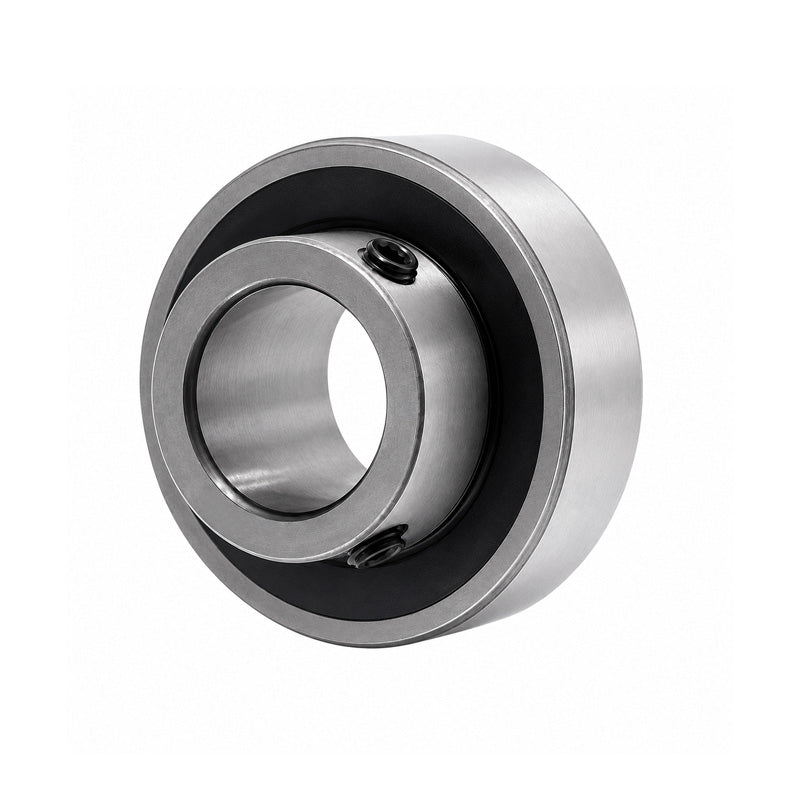

CSB209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
CSB209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
$18.12
ex VAT
Regular price
Sale price
$18.12
ex VAT
In stock
Price Break
10+
$16.13
19+
$15.22
29+
$15.04
39+
$14.86
49+
$14.68
74+
$14.50
99+
$13.59
199+
$13.41
249+
$13.23
499+
$13.05
999+
$12.68
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical

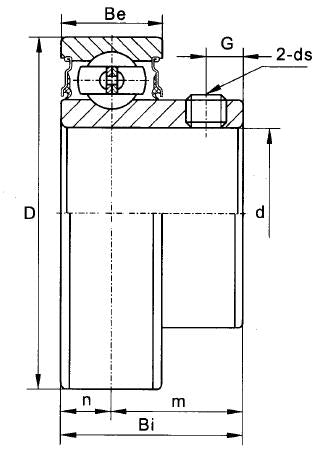

| d | 45mm |
|---|---|
| Be | 19mm |
| D | 85mm |
| Bi | 41.2mm |
| n | 9.5mm |
| m | 31.7mm |
| G | 8.2mm |
| h | 6.3mm |
| Grub screw | M8X1.0 |
| Weight | 0.8 kg |
| Dynamic load | 3260 kgf |
| Static load | 2450 kgf |
