SKU: DGF30DO-DURB

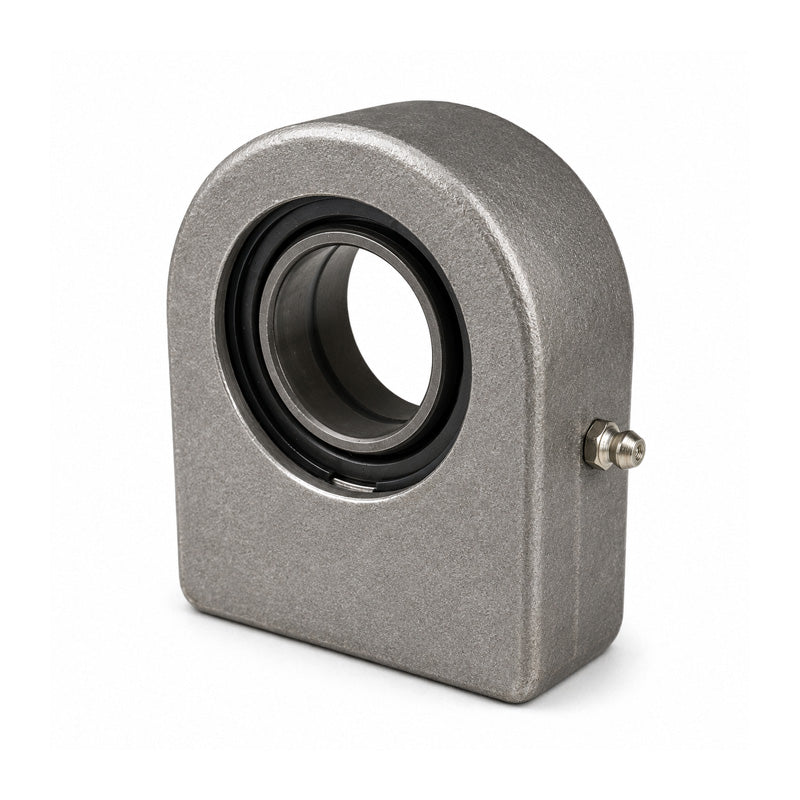

Durbal DGF30DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
Equivalent to: GF30DO SCF30ES
In stock
Price Break
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Square Welding End): Threaded female hydraulic rod end consisting of a forged, weldable steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for heavy static or changing loads, shock loads. Suitable for the fixing of piston rod ends and hydraulic cylinder bases. Rod ends can be greased subsequently by means of a conical grease nipple. Temperature range -40 deg C to +200 deg C.
Fixed as standard with maitenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings; with square welding end
Equivalent: GF30DO SCF30ES
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 30mm
Technical
| d | 30mm |
|---|---|
| d1 | 34.2mm |
| d2 | 65mm |
| dk | 40.7mm |
| B | 22mm |
| C1 | 28mm |
| l6 | 83.5mm |
| h2 | 51mm |
| tilt angle α | 6 deg |
| weight | 0.87kg |
| basic load rating dyn C | 49.6 kN |
| basic load rating stat Co | 94.4 kN |
| radial clearance CN | 8-100 µm |
