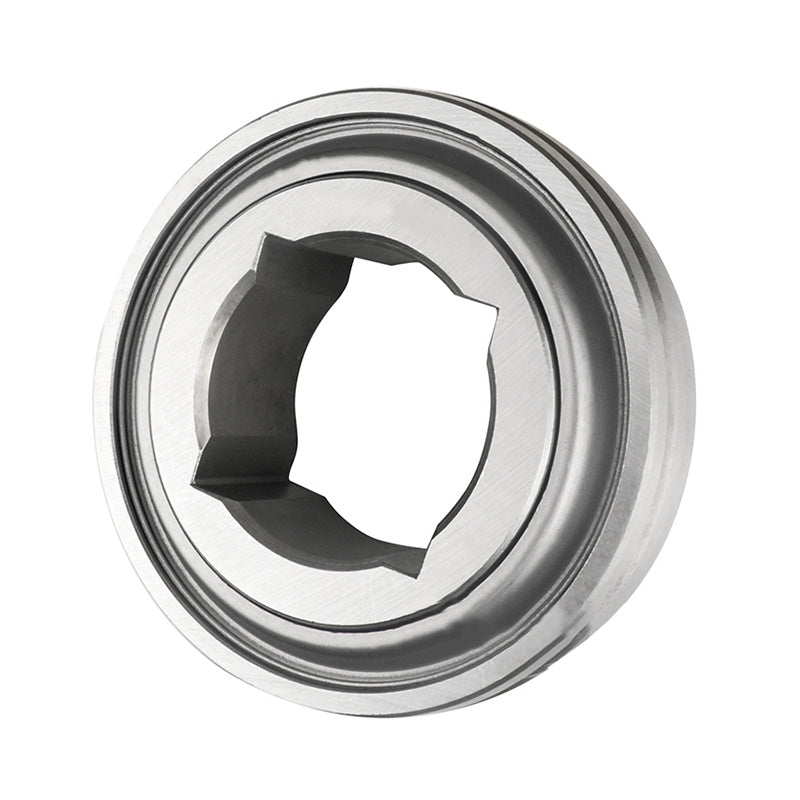

• RHP DNF240/9A Spherical Outer Square 30mm Bore Bearing 80mm Outside Diameter
1 1

SKU: DNF240/9A-RHP

RHP DNF240/9A Spherical Outer Square 30mm Bore Bearing 80mm Outside Diameter

RHP DNF240/9A Spherical Outer Square 30mm Bore Bearing 80mm Outside Diameter
$109.17 ex VAT
$109.17 ex VAT
Sale Sold out

In stock

Price Break
10+ $97.16
19+ $91.70
29+ $90.61
39+ $89.52
49+ $88.43
74+ $87.34
99+ $81.88
199+ $80.79
249+ $79.69
499+ $78.60
999+ $76.42
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Gang Disc
Application conditions:

  • Utilizes two to three support bearings on a common shaft with several disks spaced with spools
  • Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
  • A great working depth places the bearings directly into the flow of soil and crop residue
Benefits and functional features:

Bolt-on-performance:
  • Directly interchangeable industry standard units
  • Static misalignment capability accommodates imprecise mounting surfaces
Increased productivity and bearing life in field:
  • Dynamic misalignment capability eliminates internal bearing damage
  • Shock load protection due to high grade ductile iron housing
  • Exclusive patented sealing system eliminates the need for daily relubrication
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Outside Diameter:
80mm
Style:
DNF
Technical
Bore 30mm
d Nominal 30.94mm
Tolerance Nominal to Minus 0.2
D Nominal 80mm
Tolerance Nominal to Minus 0.013
B 36.51mm
C 21mm
C2 -mm
r -mm
Dynamic load Cr 22400 N
Static load Cor 17900 N
Rec max speed 500 rpm
Weight 0.61 kg
