SKU: E60-KRR-INA

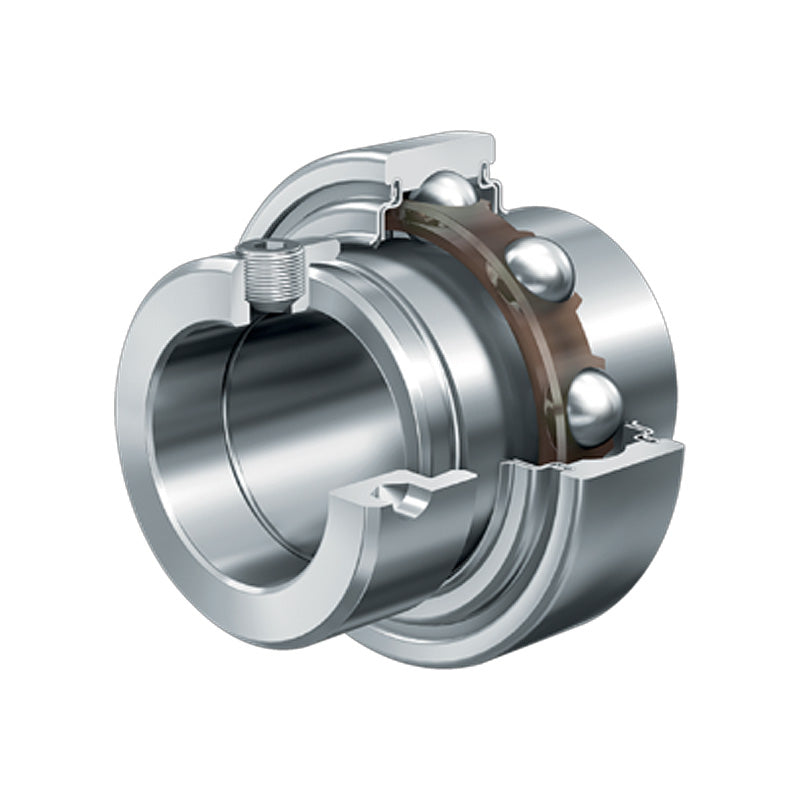

INA E60XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 60x110x77.9mm
INA E60XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 60x110x77.9mm
Regular price
$141.50
ex VAT
Regular price
Sale price
$141.50
ex VAT
In stock
Price Break
10+
$125.94
19+
$118.86
29+
$117.45
39+
$116.03
49+
$114.62
74+
$113.20
99+
$106.13
199+
$104.71
249+
$103.30
499+
$101.88
999+
$99.05
Description
Description
|
INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 77.9mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B1 | 77.9mm |
| B | 61.9mm |
| C | 24mm |
| C2 | 29mm |
| D1 | 94.5mm |
| d1 | 76.5mm |
| d3 max | 84mm |
| S | 31mm |
| W | 5mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.82 kg |
