SKU: EA17-EU

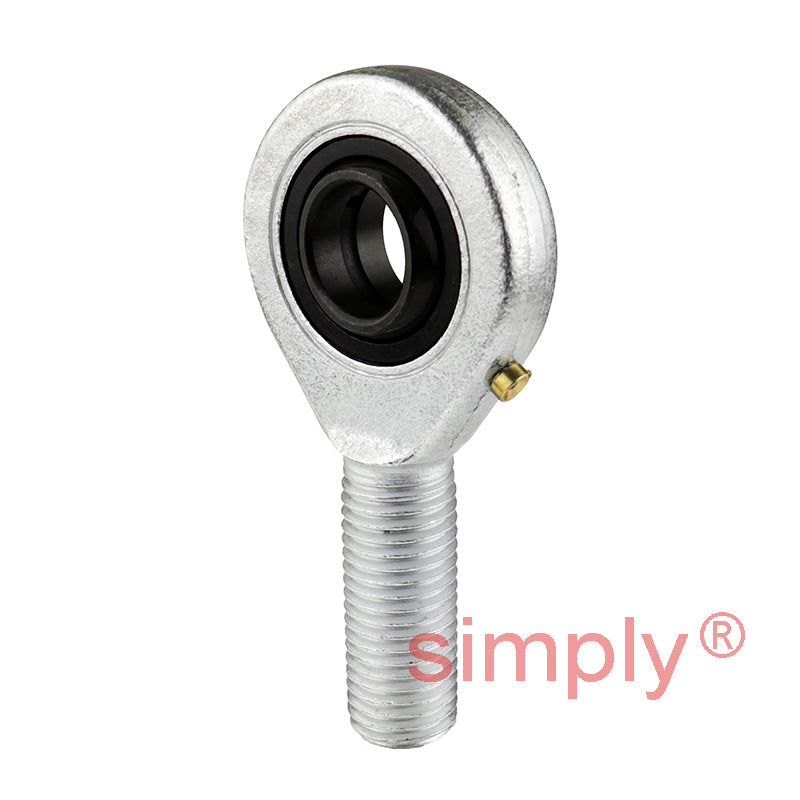

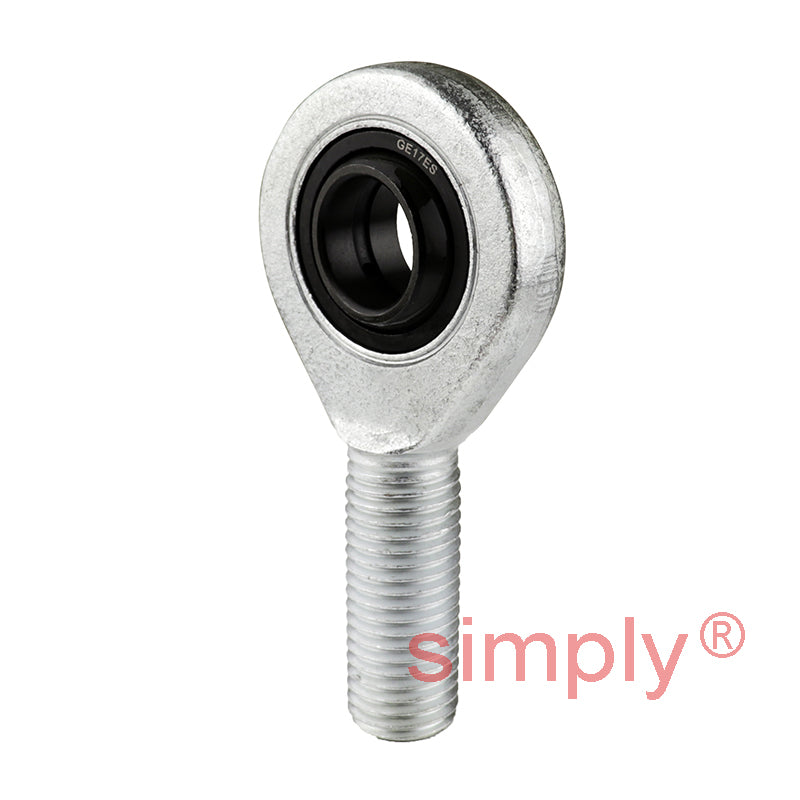

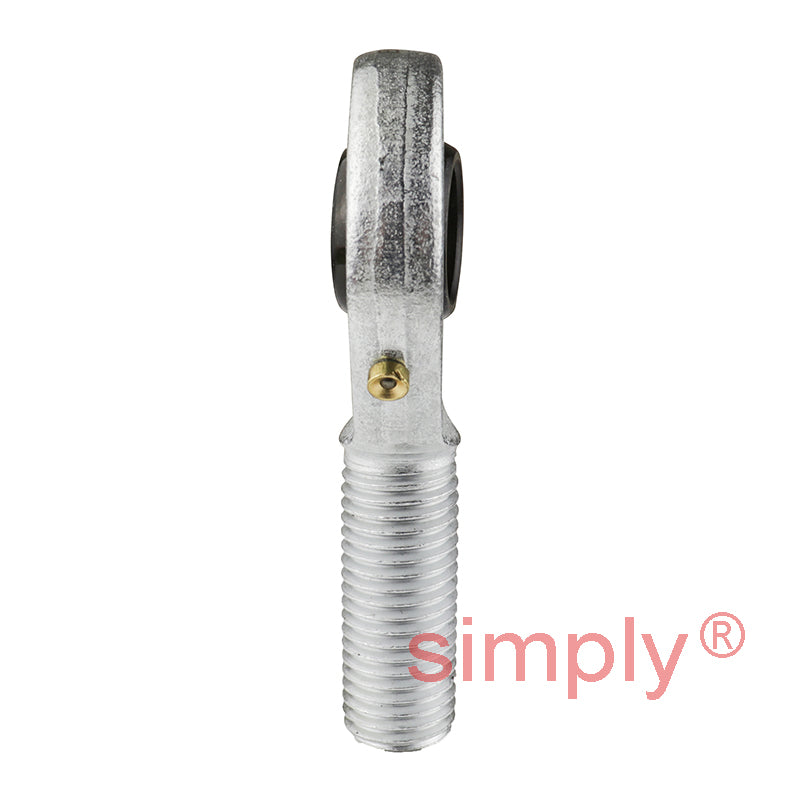

Budget EA17 Right Hand Steel / Steel Lined Plain Male Rod End 17mm Bore M16 Thread
Budget EA17 Right Hand Steel / Steel Lined Plain Male Rod End 17mm Bore M16 Thread
Regular price
$13.18
ex VAT
Regular price
Sale price
$13.18
ex VAT
In stock
Price Break
10+
$11.73
19+
$11.07
29+
$10.94
39+
$10.81
49+
$10.68
74+
$10.54
99+
$9.89
199+
$9.75
249+
$9.62
499+
$9.49
999+
$9.23
Description
Description
EA Series Steel Male Plain Rod Ends: These linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways.
Benefits: Adjustable clearance, low friction, low maintenance, cost effective solution.
Benefits: Adjustable clearance, low friction, low maintenance, cost effective solution.
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16
- Thread Direction:
- Right Hand
- Inside Diameter:
- 17mm
Technical
Technical
| D | 17mm |
|---|---|
| B | 14mm |
| M | 11.5mm |
| A | 46mm |
| G (Thread Size) | M16 |
| F | 69mm |
| GL | 36mm |
| L | 92mm |
| Ball Diameter | 25mm |
| a° angle | 10° |
| Dynamic Load Rating | 21 kN |
| Static Load Rating | 45 kN |
| Weight | 0.172 kg |
