SKU: ESFCE211-SNR

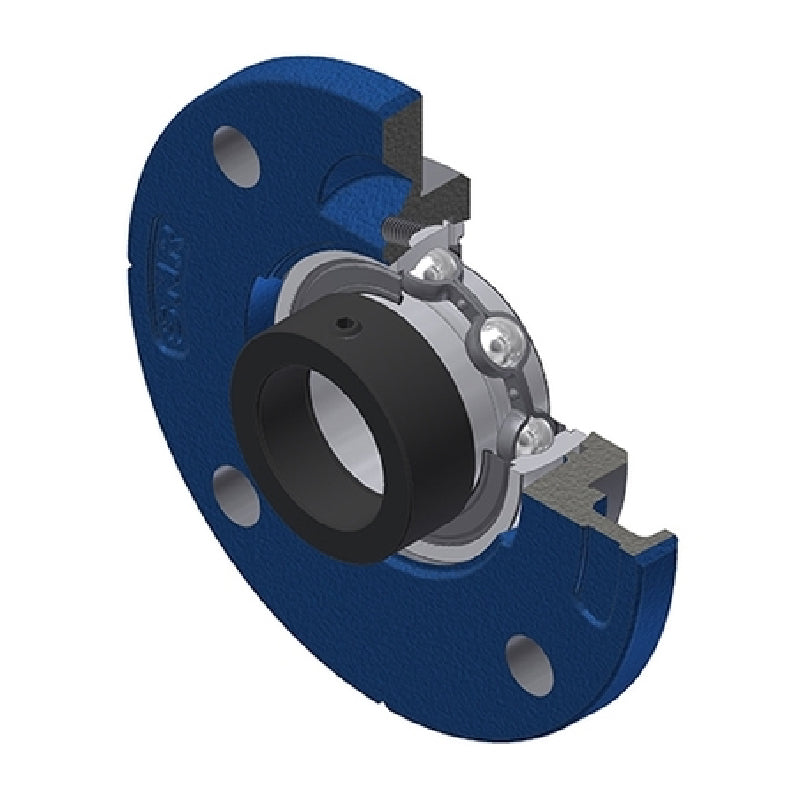

SNR ESFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$104.08
ex VAT
Regular price
Sale price
$104.08
ex VAT
In stock
Price Break
5+
$103.04
10+
$98.88
20+
$96.79
50+
$93.67
100+
$91.59
500+
$86.39
1000+
$72.86
Description
Description
ESFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- ESFCE
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 27.5mm |
| A1 | 15mm |
| A2 | 36.4mm |
| A3 | 3mm |
| B | 32.5mm |
| B1 | 48.4mm |
| d1 | 74.5mm |
| e | 0mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 18mm |
| S | 12mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.88 kg |
