SKU: EXC205-SNR

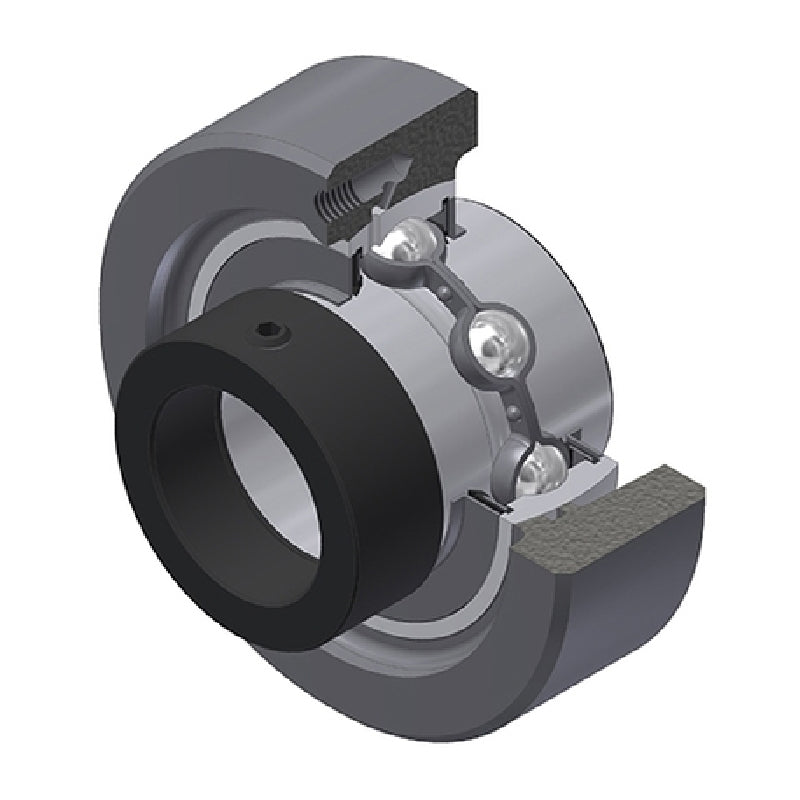

SNR EXC205 Metric Cast Iron Cartridge Unit with 25mm Bore Insert 22mm Outside Dia - Allow 2-3 Days
SNR EXC205 Metric Cast Iron Cartridge Unit with 25mm Bore Insert 22mm Outside Dia - Allow 2-3 Days
Regular price
$47.57
ex VAT
Regular price
Sale price
$47.57
ex VAT
In stock
Price Break
5+
$47.09
10+
$45.19
20+
$44.24
50+
$42.81
100+
$41.86
500+
$39.48
1000+
$33.30
Description
Description
EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 22mm |
| A3 | 1.5mm |
| B1 | 44.3mm |
| d1 | 37.4mm |
| H | 80mm |
| S | 17.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.65 kg |
